Extract the provided 2-dimensional sketch's profile's origin's 'y' value.
profileStartY(@profile: Sketch): number(Length)
Arguments
| Name | Type | Description | Required |
|---|---|---|---|
profile | Sketch | Profile whose start is being used. | Yes |
Returns
number(Length) - A number.

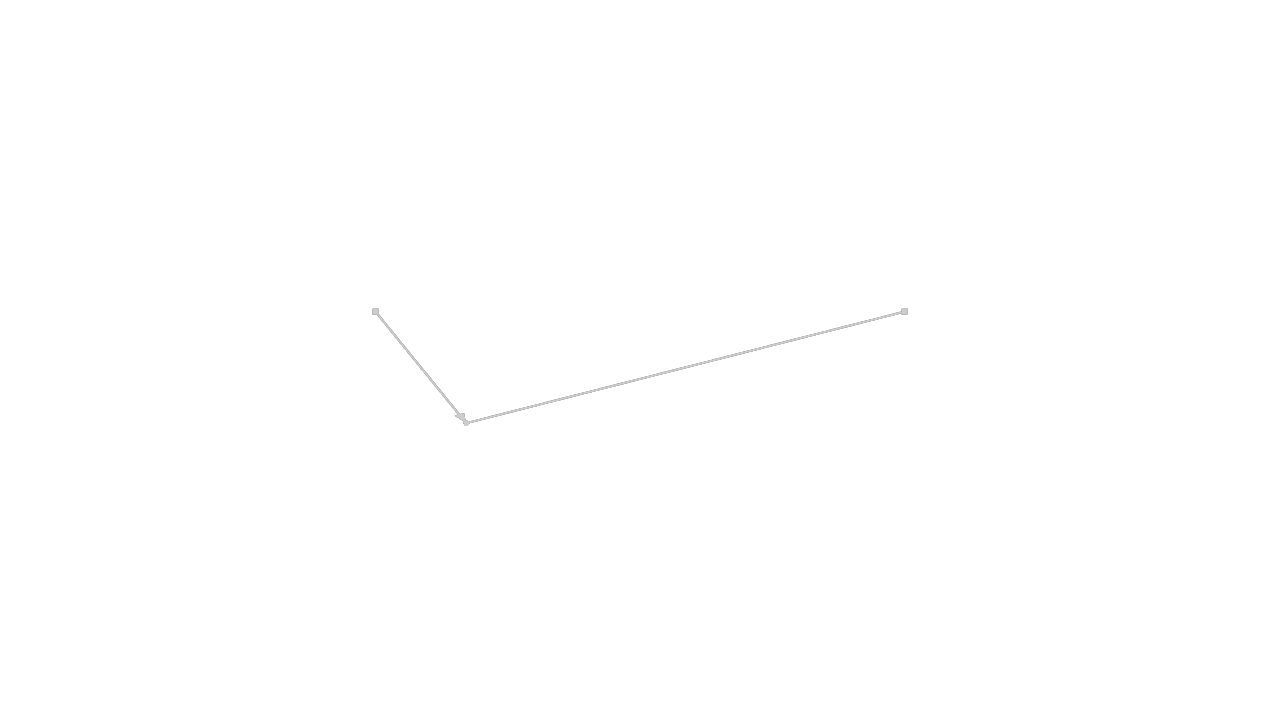

Examples
sketch001 = startSketchOn(XY)
|> startProfile(at = [5, 2])
|> angledLine(angle = -60deg, length = 14)
|> angledLine(angle = 30deg, endAbsoluteY = profileStartY(%))
