Add a hyperbolic section to an existing sketch.
hyperbolic(
@sketch: Sketch,
semiMajor: number(Length),
semiMinor: number(Length),
interiorAbsolute?: Point2d,
endAbsolute?: Point2d,
interior?: Point2d,
end?: Point2d,
tag?: tag,
): Sketch
Arguments
| Name | Type | Description | Required |
|---|---|---|---|
sketch | Sketch | Which sketch should this path be added to? | Yes |
semiMajor | number(Length) | The semi major value, a, of the hyperbolic equation x^2 / a ^ 2 - y^2 / b^2 = 1. | Yes |
semiMinor | number(Length) | The semi minor value, b, of the hyperbolic equation x^2 / a ^ 2 - y^2 / b^2 = 1. | Yes |
interiorAbsolute | Point2d | Any point between the segment's start and end. Requires endAbsolute. Incompatible with interior or end. | No |
endAbsolute | Point2d | Where should this segment end? Requires interiorAbsolute. Incompatible with interior or end. | No |
interior | Point2d | Any point between the segment's start and end. This point is relative to the start point. Requires end. Incompatible with interiorAbsolute or endAbsolute. | No |
end | Point2d | Where should this segment end? This point is relative to the start point. Requires interior. Incompatible with interiorAbsolute or endAbsolute. | No |
tag | tag | Create a new tag which refers to this arc. | No |
Returns
Sketch - A sketch is a collection of paths.

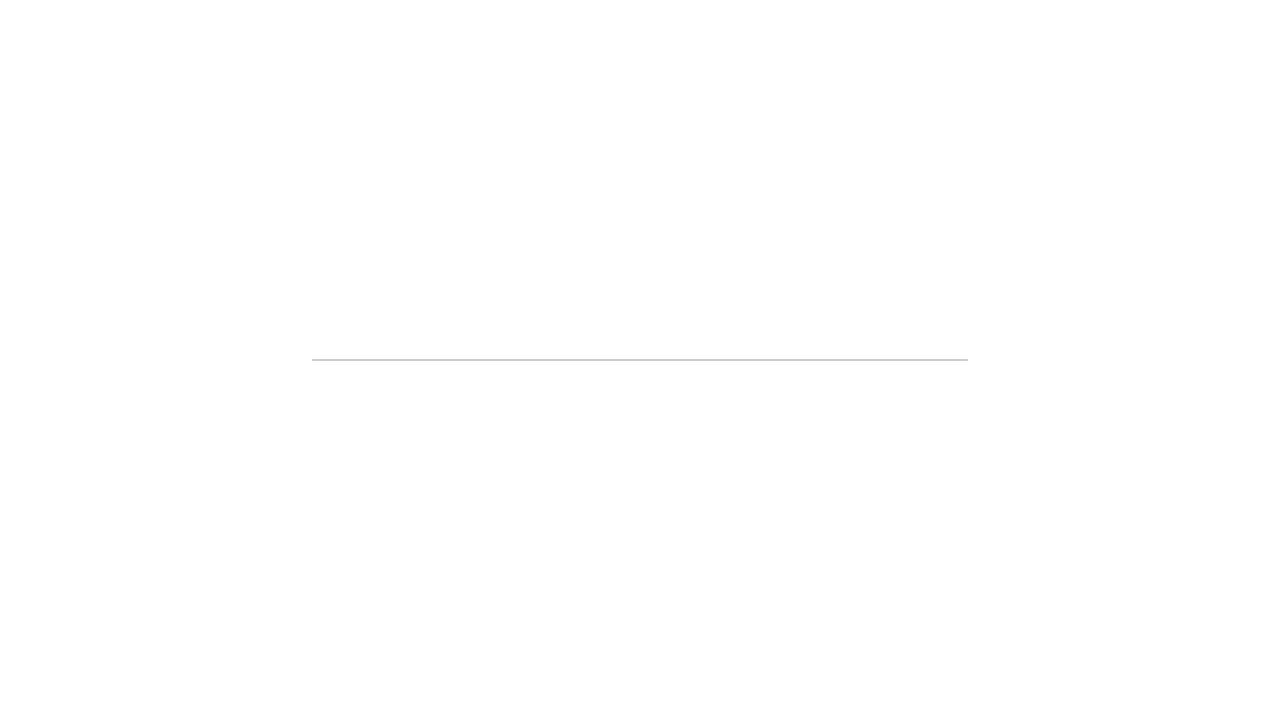

Examples
exampleSketch = startSketchOn(XY)
|> startProfile(at = [0, 0])
|> hyperbolic(
end = [10, 0],
semiMajor = 2,
semiMinor = 1,
interior = [0, 0],
)
|> close()
