Extract the 'x' axis value of the last line segment in the provided 2-d sketch.
lastSegX(@sketch: Sketch): number(Length)
Arguments
| Name | Type | Description | Required |
|---|---|---|---|
sketch | Sketch | The sketch whose line segment is being queried. | Yes |
Returns
number(Length) - A number.

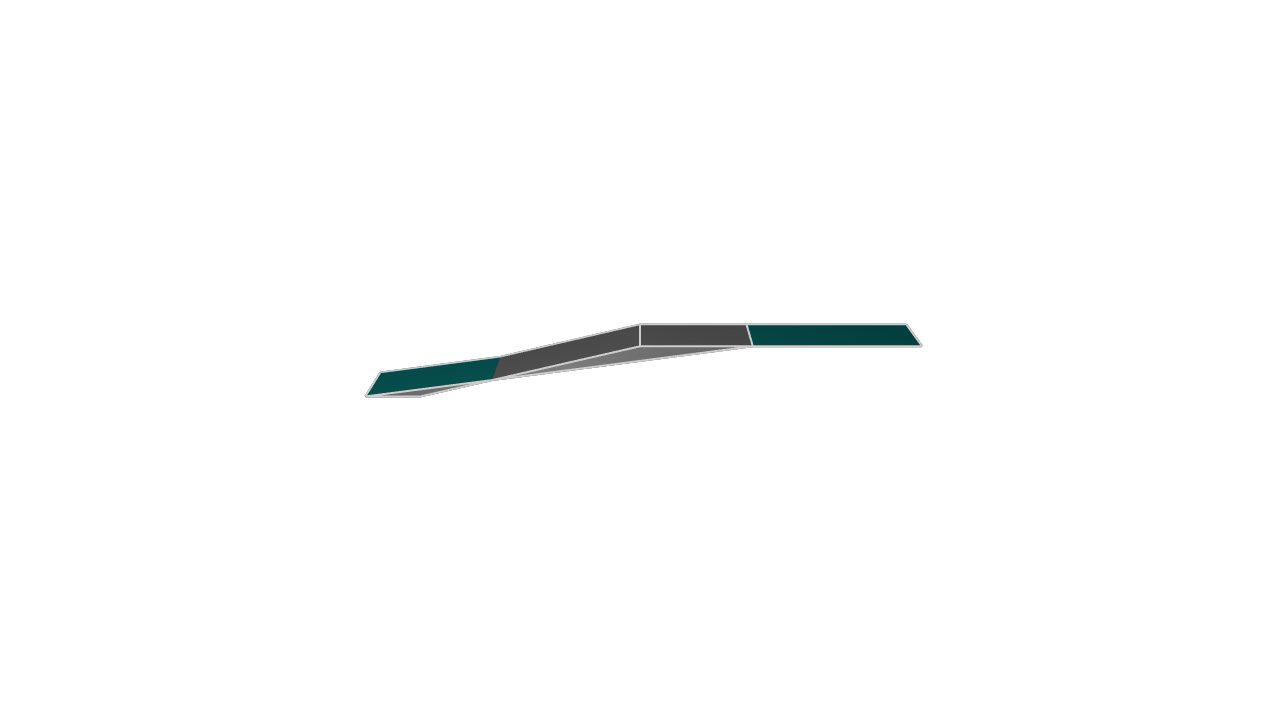

Examples
exampleSketch = startSketchOn(XZ)
|> startProfile(at = [0, 0])
|> line(end = [5, 0])
|> line(end = [20, 5])
|> line(end = [lastSegX(%), 0])
|> line(end = [-15, 0])
|> close()
example = extrude(exampleSketch, length = 5)
