rectangleFunction in std::sketch

Sketch a rectangle.

rectangle(
  @sketchOrSurface: Sketch | Plane | Face,
  width: number(Length),
  height: number(Length),
  center?: Point2d,
  corner?: Point2d,
): Sketch

A rectangle can be defined by its width, height, and location. Either the center or corner must be provided, but not both, to specify its location.

Arguments

Name	Type	Description	Required
`sketchOrSurface`	`Sketch` or `Plane` or `Face`	Sketch to extend, or plane or surface to sketch on.	Yes
`width`	`number(Length)`	Rectangle's width along X axis.	Yes
`height`	`number(Length)`	Rectangle's height along Y axis.	Yes
`center`	`Point2d`	The center of the rectangle. Either `corner` or `center` is required, but not both.	No
`corner`	`Point2d`	The corner of the rectangle. Either `corner` or `center` is required, but not both. This will be the corner which is most negative on both X and Y axes.	No

Returns

Sketch - A sketch is a collection of paths.

Examples

exampleSketch = startSketchOn(-XZ)
  |> rectangle(center = [0, 0], width = 10, height = 5)

Rendered example of rectangle 0

exampleSketch = startSketchOn(-XZ)
  |> rectangle(corner = [0, 0], width = 10, height = 5)

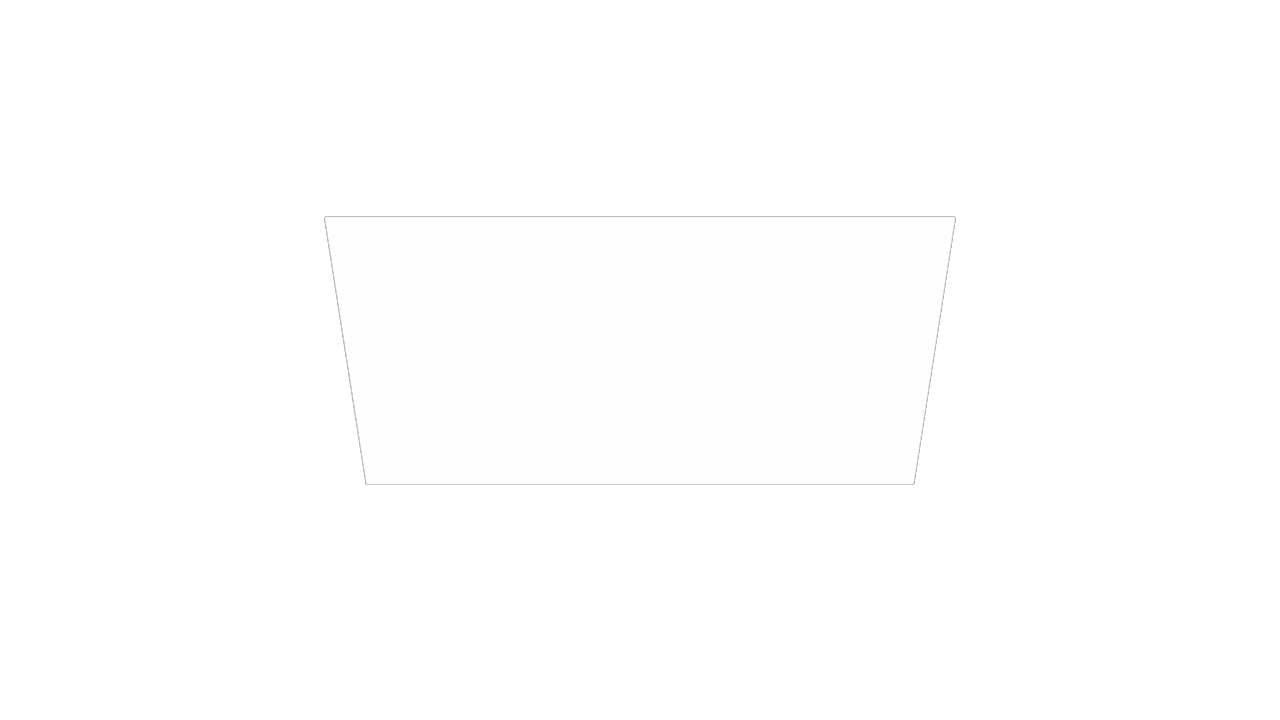

Rendered example of rectangle 1
