helixFunction in std

Create a helix.

helix(
  revolutions: number(_),
  angleStart: number(Angle),
  ccw?: bool,
  radius?: number(Length),
  axis?: Axis3d | Edge,
  length?: number(Length),
  cylinder?: Solid,
): Helix

Arguments

Name	Type	Description	Required
`revolutions`	`number(_)`	Number of revolutions.	Yes
`angleStart`	`number(Angle)`	Start angle.	Yes
`ccw`	`bool`	Is the helix rotation counter clockwise? The default is `false`.	No
`radius`	`number(Length)`	Radius of the helix.	No
`axis`	`Axis3d` or `Edge`	Axis to use for the helix.	No
`length`	`number(Length)`	Length of the helix. This is not necessary if the helix is created around an edge. If not given the length of the edge is used.	No
`cylinder`	`Solid`	Cylinder to create the helix on.	No

Returns

Helix - A helix; created by the helix function.

Examples

// Create a helix around the Z axis.
helixPath = helix(
  angleStart = 0,
  ccw = true,
  revolutions = 5,
  length = 10,
  radius = 5,
  axis = Z,
)

// Create a spring by sweeping around the helix path.
springSketch = startSketchOn(XZ)
  |> circle(center = [5, 0], radius = 0.5)
  |> sweep(path = helixPath)

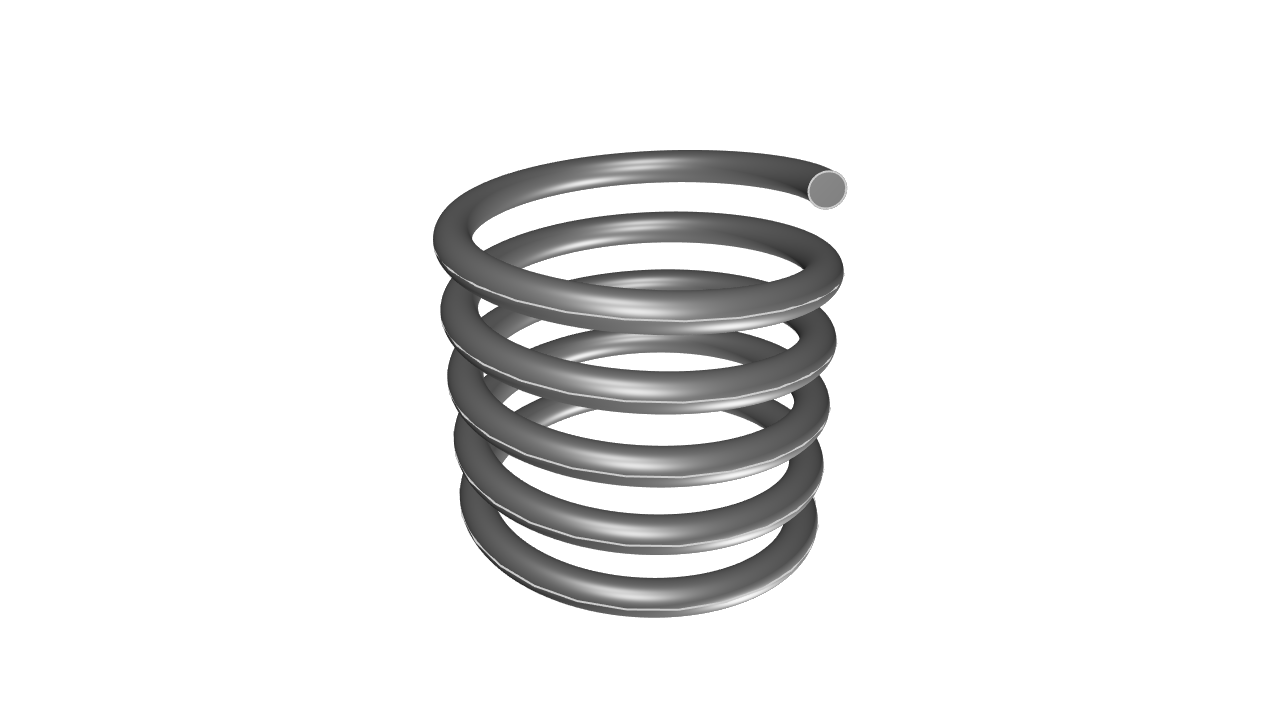

Rendered example of helix 0

// Create a helix around an edge.
helper001 = startSketchOn(XZ)
  |> startProfile(at = [0, 0])
  |> line(end = [0, 10], tag = $edge001)

helixPath = helix(
  angleStart = 0,
  ccw = true,
  revolutions = 5,
  length = 10,
  radius = 5,
  axis = edge001,
)

// Create a spring by sweeping around the helix path.
springSketch = startSketchOn(XZ)
  |> circle(center = [5, 0], radius = 0.5)
  |> sweep(path = helixPath)

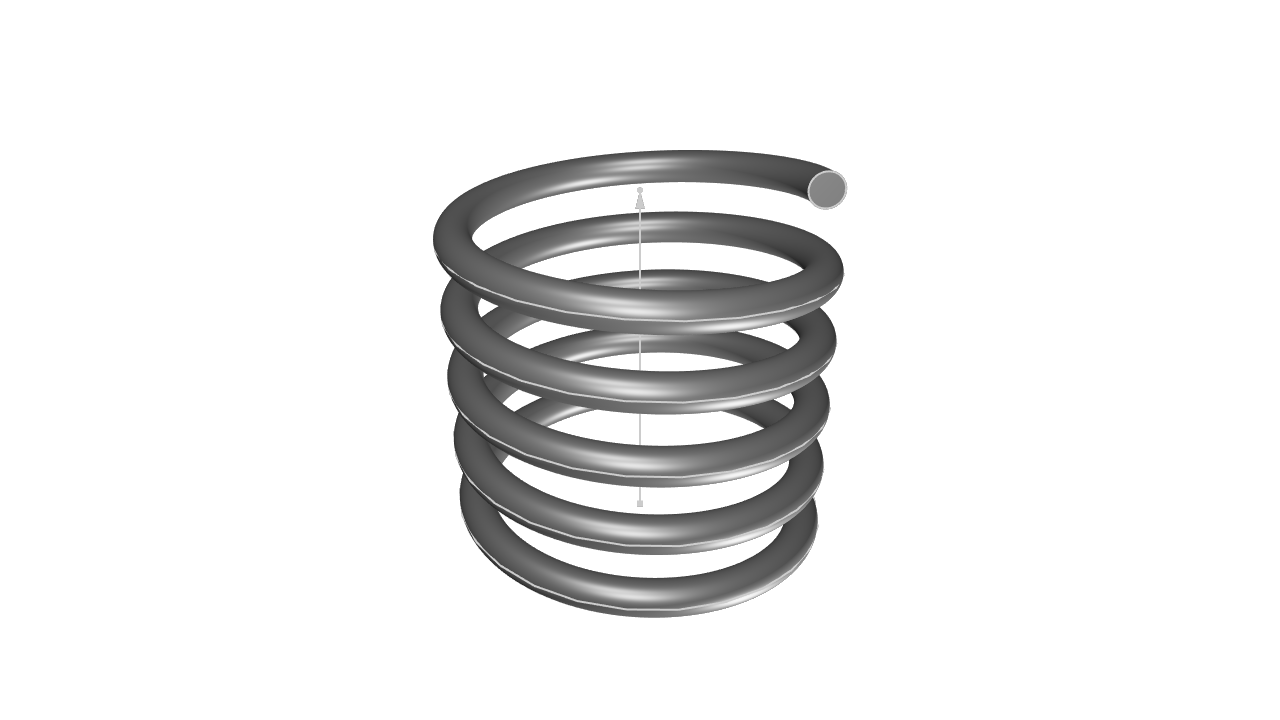

Rendered example of helix 1

// Create a helix around a custom axis.
helixPath = helix(
  angleStart = 0,
  ccw = true,
  revolutions = 5,
  length = 10,
  radius = 5,
  axis = {
    direction = [0, 0, 1.0],
    origin = [0, 0.25, 0]
  },
)

// Create a spring by sweeping around the helix path.
springSketch = startSketchOn(XZ)
  |> circle(center = [5, 0], radius = 1)
  |> sweep(path = helixPath)

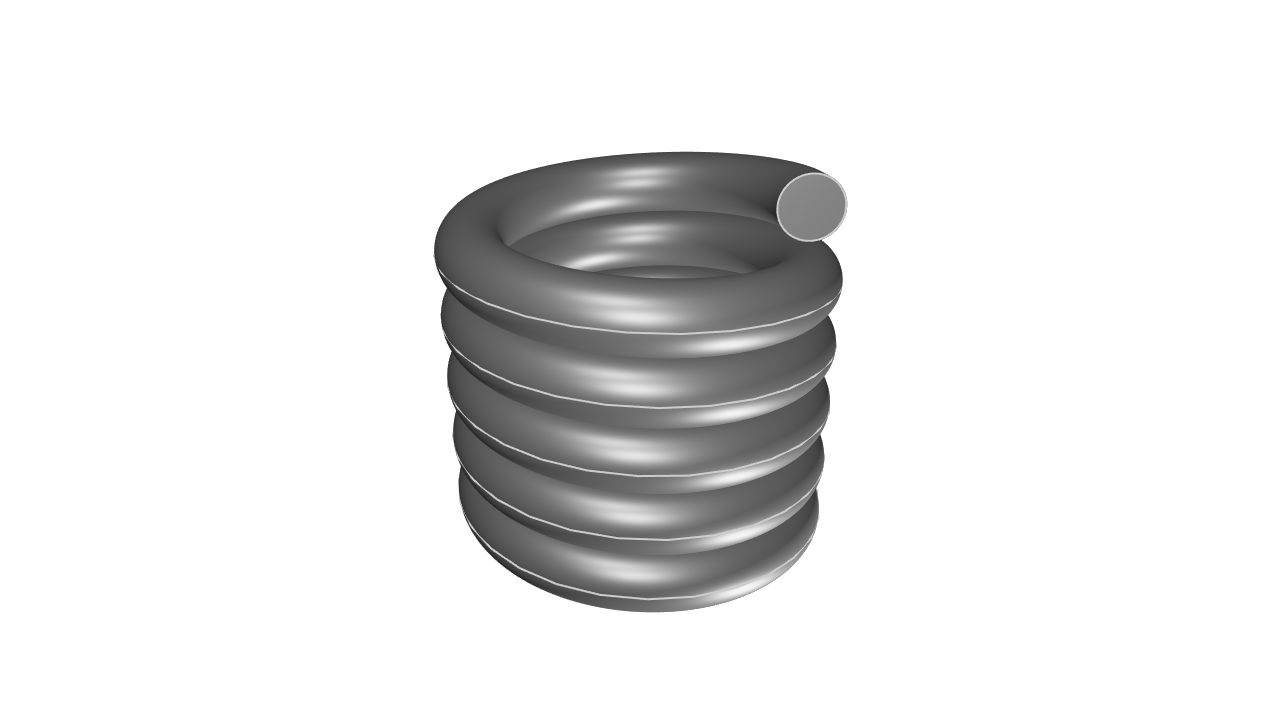

Rendered example of helix 2

// Create a helix on a cylinder.


part001 = startSketchOn(XY)
  |> circle(center = [5, 5], radius = 10)
  |> extrude(length = 10)

helix(
  angleStart = 0,
  ccw = true,
  revolutions = 16,
  cylinder = part001,
)

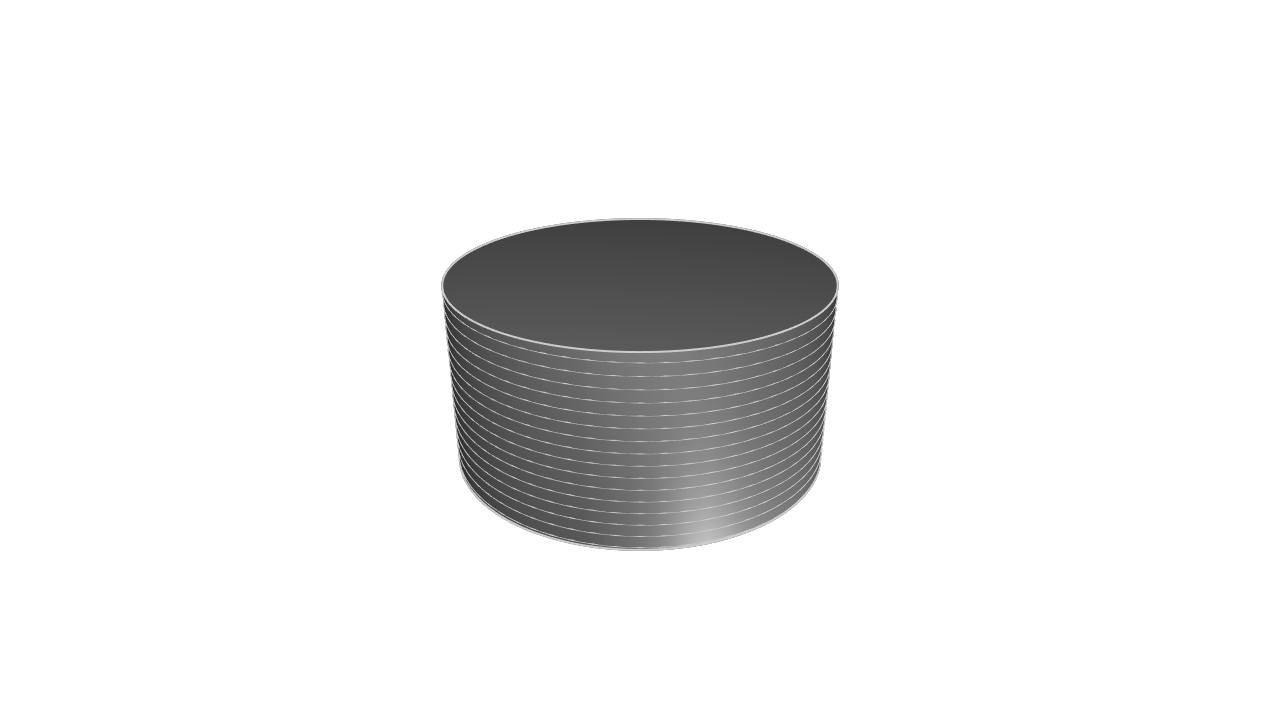

Rendered example of helix 3
