GD&T position annotation specifying how much faces or edges may deviate from their ideal location.
This is part of model-based definition (MBD).
Arguments
| Name | Type | Description | Required |
|---|---|---|---|
tolerance | number(Length) | The positional tolerance that is acceptable. | Yes |
faces | [TaggedFace; 1+] | The faces to be annotated. | No |
edges | [Edge; 1+] | The edges to be annotated. | No |
datums | [string; 1+] | The datum references to display in the feature control frame. Supports up to primary, secondary, and tertiary datums. | No |
precision | number(_) | The number of decimal places to display. The default is 3. Must be greater than or equal to 0 and less than or equal to 9. | No |
framePosition | Point2d | The position of the feature control frame relative to the leader arrow. The default is [100mm, 100mm]. | No |
framePlane | Plane | The plane in which to display the feature control frame. The default is XY. Other standard planes like XZ and YZ can also be used. The frame may be displayed in a plane parallel to the given plane. | No |
leaderScale | number(_) | Scale of the leader. The default is 1.0. Must be greater than 0. | No |
fontSize | number(Length) | The model-space height to use for annotation text. The default is 10mm. Explicit units are supported; bare numbers use the file's default length unit. This changes the scene size, not the internal raster texture quality. | No |
Returns
[GdtAnnotation; 1+]

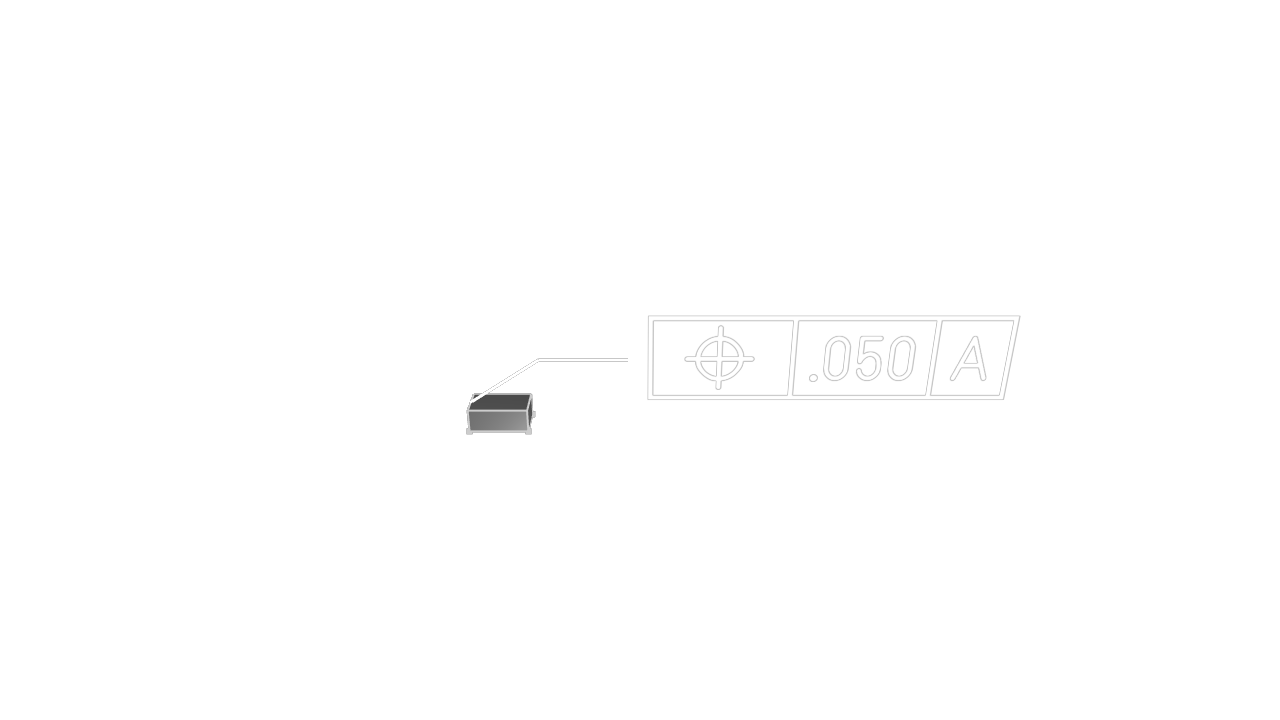

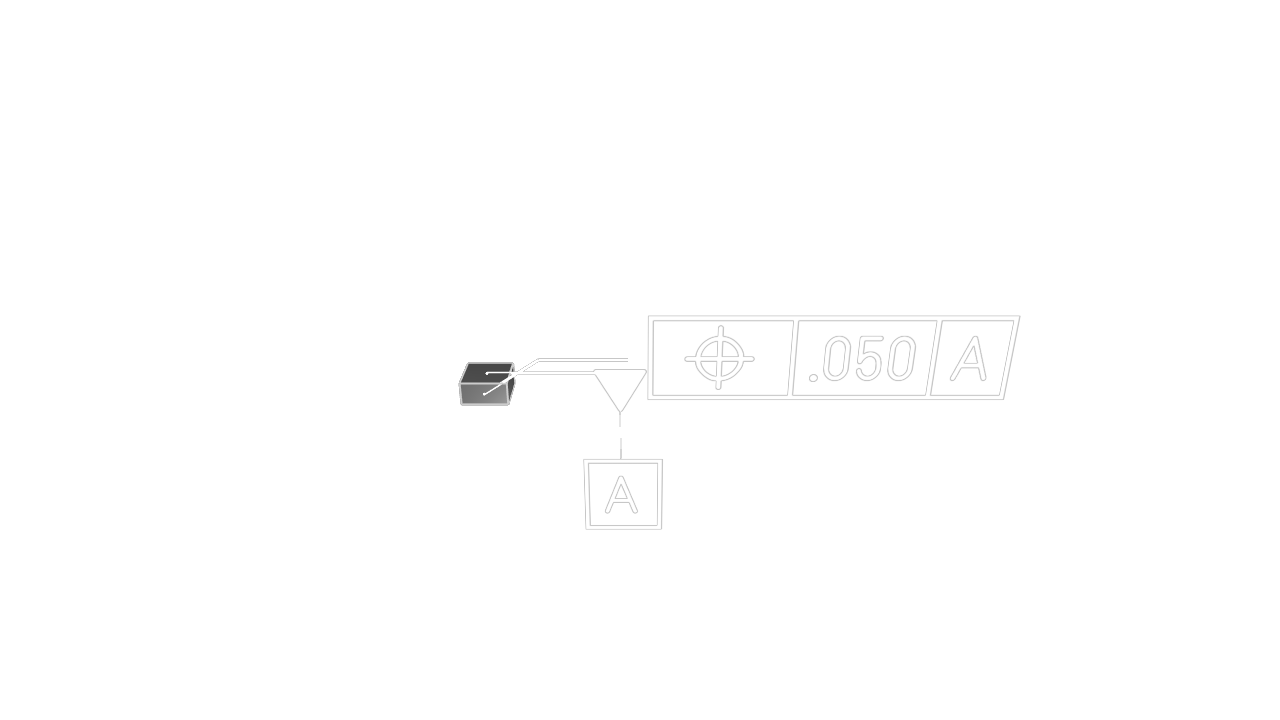

Examples
