kcl library reference → std → offsetPlane

offsetPlaneFunction in std

Offset a plane by a distance along its normal.

offsetPlane(
  @plane: Plane,
  offset: number(Length),
): Plane

For example, if you offset the XZ plane by 10, the new plane will be parallel to the XZ plane and 10 units away from it.

Arguments

Name	Type	Description	Required
`plane`	`Plane`	The plane (e.g. `XY`) which this new plane is created from.	Yes
`offset`	`number(Length)`	Distance from the standard plane this new plane will be created at.	Yes

Returns

Plane - A plane.

Examples

// Loft a square and a circle on the `XY` plane using offset.
squareSketch = startSketchOn(XY)
    |> startProfile(at = [-100, 200])
    |> line(end = [200, 0])
    |> line(end = [0, -200])
    |> line(end = [-200, 0])
    |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
    |> close()

circleSketch = startSketchOn(offsetPlane(XY, offset = 150))
    |> circle( center = [0, 100], radius = 50 )

loft([squareSketch, circleSketch])

Rendered example of offsetPlane 0

// Loft a square and a circle on the `XZ` plane using offset.
squareSketch = startSketchOn(XZ)
    |> startProfile(at = [-100, 200])
    |> line(end = [200, 0])
    |> line(end = [0, -200])
    |> line(end = [-200, 0])
    |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
    |> close()

circleSketch = startSketchOn(offsetPlane(XZ, offset = 150))
    |> circle( center = [0, 100], radius = 50 )

loft([squareSketch, circleSketch])

// Loft a square and a circle on the `YZ` plane using offset.
squareSketch = startSketchOn(YZ)
    |> startProfile(at = [-100, 200])
    |> line(end = [200, 0])
    |> line(end = [0, -200])
    |> line(end = [-200, 0])
    |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
    |> close()

circleSketch = startSketchOn(offsetPlane(YZ, offset = 150))
    |> circle( center = [0, 100], radius = 50 )

loft([squareSketch, circleSketch])

Rendered example of offsetPlane 2

// Loft a square and a circle on the `-XZ` plane using offset.
squareSketch = startSketchOn(-XZ)
    |> startProfile(at = [-100, 200])
    |> line(end = [200, 0])
    |> line(end = [0, -200])
    |> line(end = [-200, 0])
    |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
    |> close()

circleSketch = startSketchOn(offsetPlane(-XZ, offset = 150))
    |> circle(center = [0, 100], radius = 50)

loft([squareSketch, circleSketch])

Rendered example of offsetPlane 3

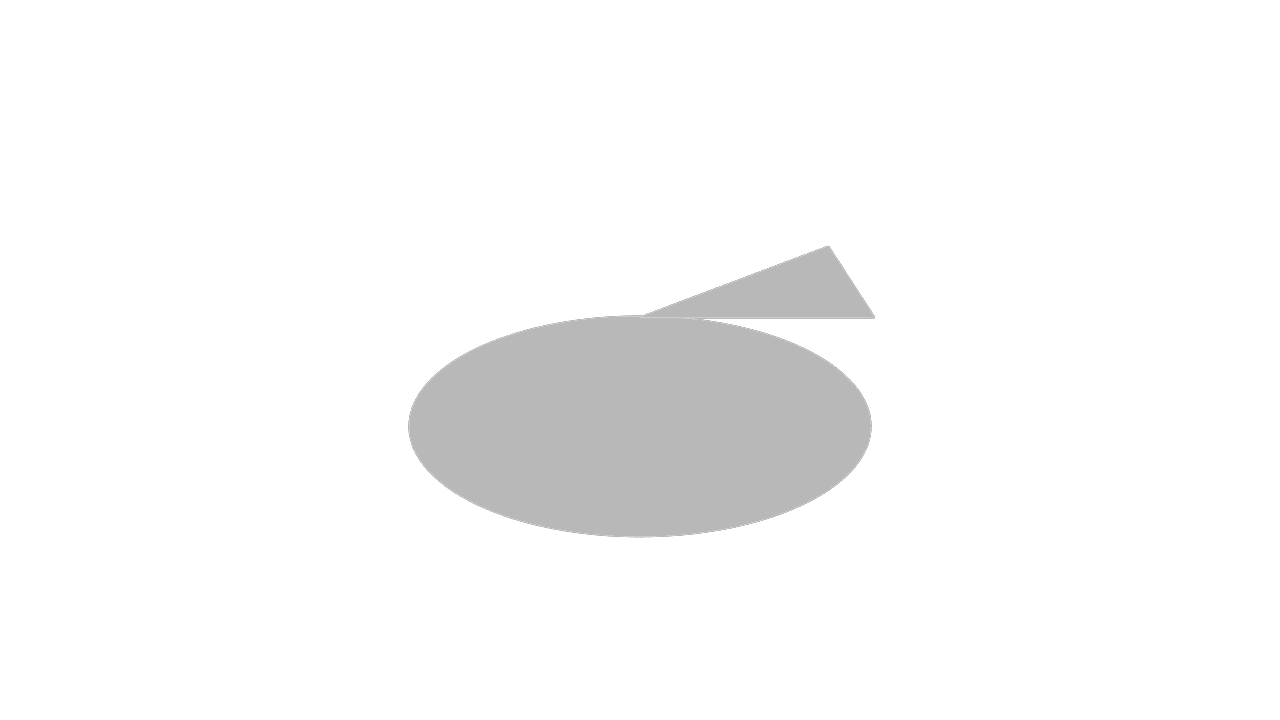

// A circle on the XY plane
startSketchOn(XY)
  |> startProfile(at = [0, 0])
  |> circle( radius = 10, center = [0, 0] )

// Triangle on the plane 4 units above
startSketchOn(offsetPlane(XY, offset = 4))
  |> startProfile(at = [0, 0])
  |> line(end = [10, 0])
  |> line(end = [0, 10])
  |> close()

Rendered example of offsetPlane 4
