Std Gdt Parallelism

gdt::parallelismFunction in std::gdt

GD&T parallelism annotation specifying how much faces or edges may deviate from parallel orientation relative to datum references.

This is part of model-based definition (MBD).

Name	Type	Description	Required
`tolerance`	`number(Length)`	The tolerance zone size for parallel orientation.	Yes
`faces`	[`TaggedFace`; 1+]	The faces to be annotated.	No
`edges`	[`Edge`; 1+]	The edges to be annotated.	No
`datums`	[`string`; 1+]	The datum references to display in the feature control frame. Supports up to primary, secondary, and tertiary datums.	No
`precision`	`number(_)`	The number of decimal places to display. The default is `3`. Must be greater than or equal to `0` and less than or equal to `9`.	No
`framePosition`	`Point2d`	The position of the feature control frame relative to the leader arrow. The default is `[100mm, 100mm]`.	No
`framePlane`	`Plane`	The plane in which to display the feature control frame. The default is `XY`. Other standard planes like `XZ` and `YZ` can also be used. The frame may be displayed in a plane parallel to the given plane.	No
`leaderScale`	`number(_)`	Scale of the leader. The default is `1.0`. Must be greater than `0`.	No
`fontSize`	`number(Length)`	The model-space height to use for annotation text. The default is `10mm`. Explicit units are supported; bare numbers use the file's default length unit. This changes the scene size, not the internal raster texture quality.	No

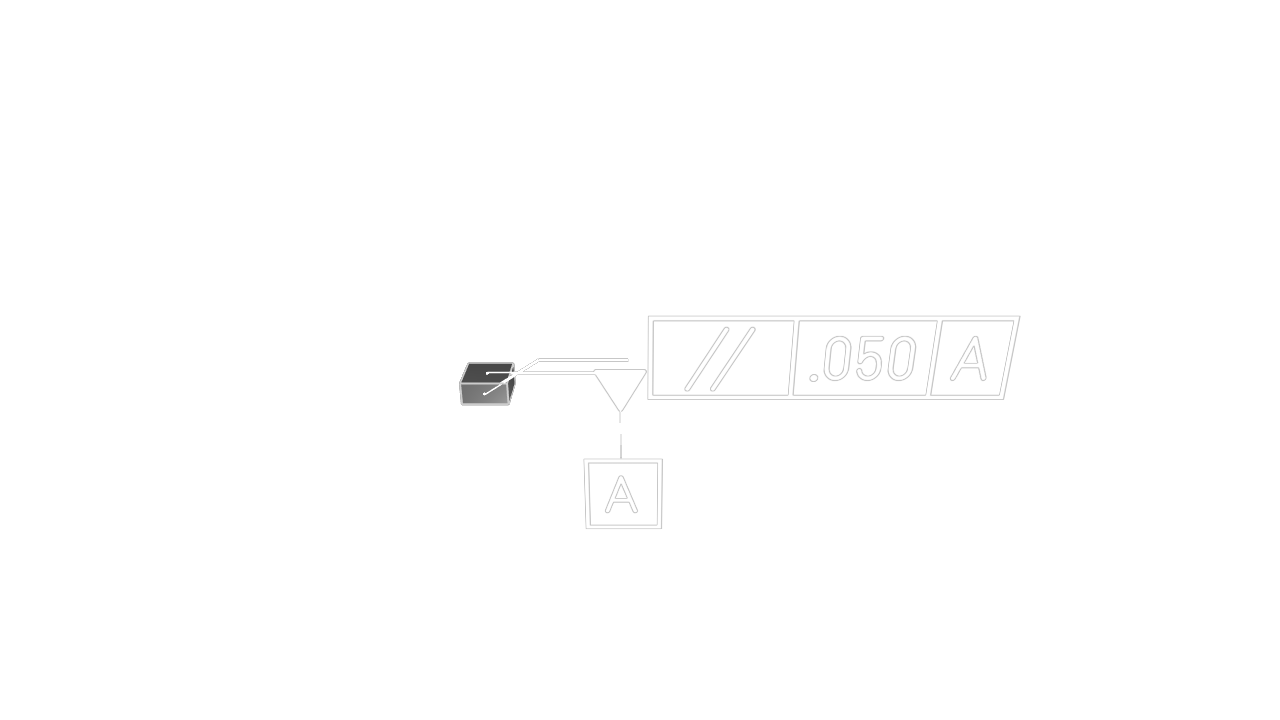

Rendered example of gdt::parallelism 0

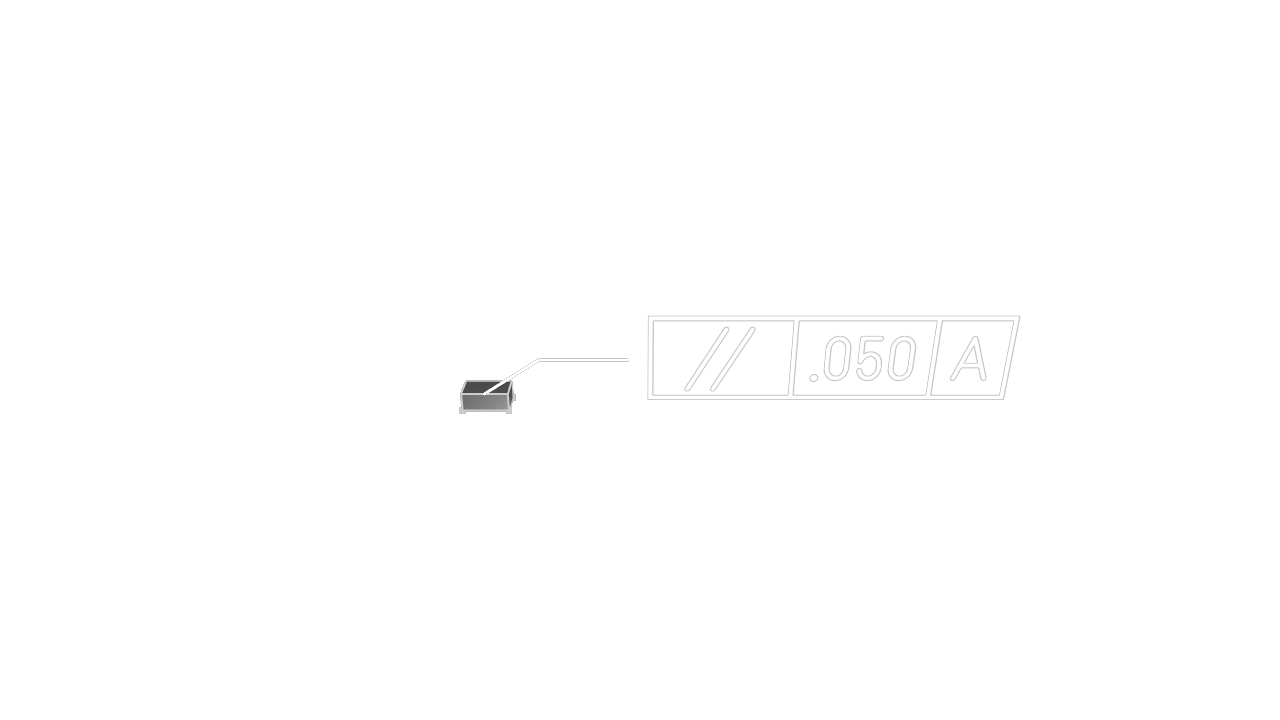

Rendered example of gdt::parallelism 1
