wedge

wedge

KCL

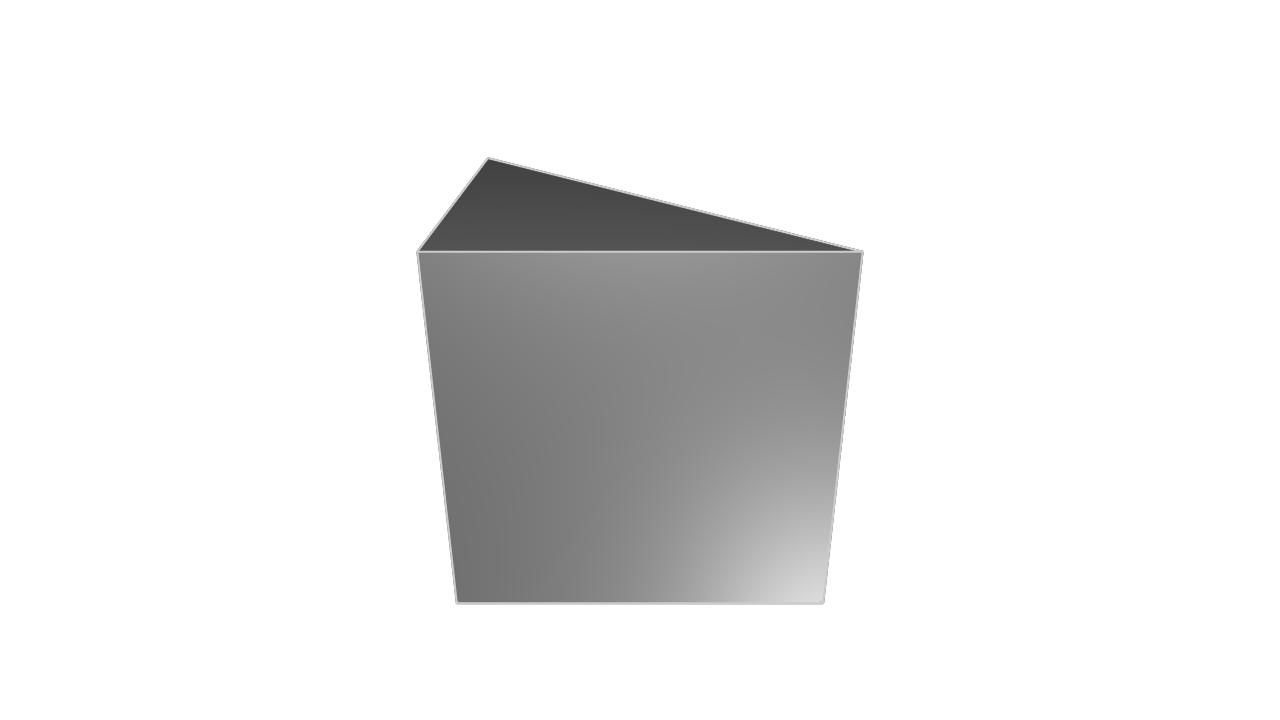

// Wedge
// A wedge is a triangular prism defined by it's length, width, and height.




@settings(defaultLengthUnit = mm)

// Define parameters
length = 10
width = 10
height = 10

// create a sketch for the wedge profile on the XY plane
sketch = startSketchOn(XY)

// create the profile at the top of the wedge
profile = startProfile(sketch, at = [0, height])
  |> yLine(length = -height)
  |> xLine(length = length)
  |> close()

// extrude the profile to create the wedge
wedge = extrude(profile, length = width)
