torus

torus

KCL

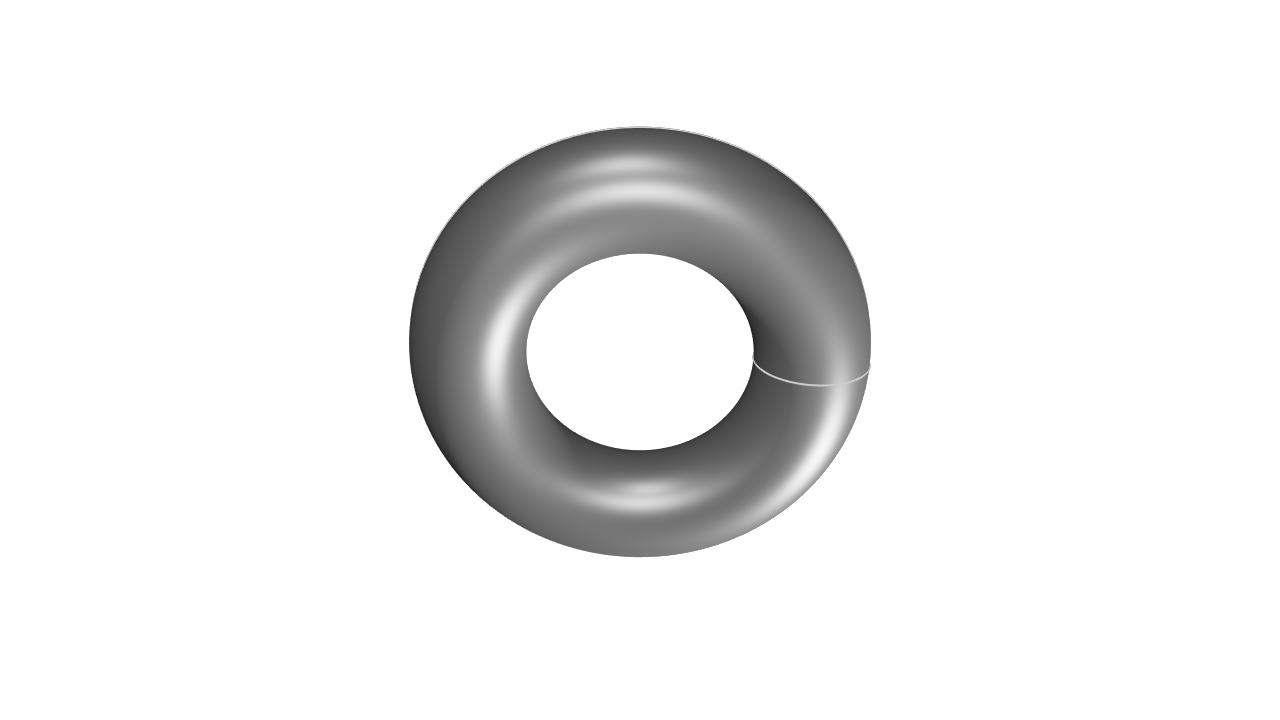

// Torus
// A torus is defined by it's diameter and height.




@settings(defaultLengthUnit = mm)

// Define parameters
torusInnerDiameter = 20
crossSectionDiameter = 10

// create a sketch for the torus profile on the XY plane
sketch = startSketchOn(XY)

// create the profile for the cross section of the torus
profile = startProfile(
       sketch,
       at = [
         torusInnerDiameter / 2 + crossSectionDiameter / 2,
         0
       ],
     )
  |> circle(center = profileStart(), radius = crossSectionDiameter / 2)

// revolve the profile to create the torus
torus = revolve(profile, axis = Y, angle = 360.0)
