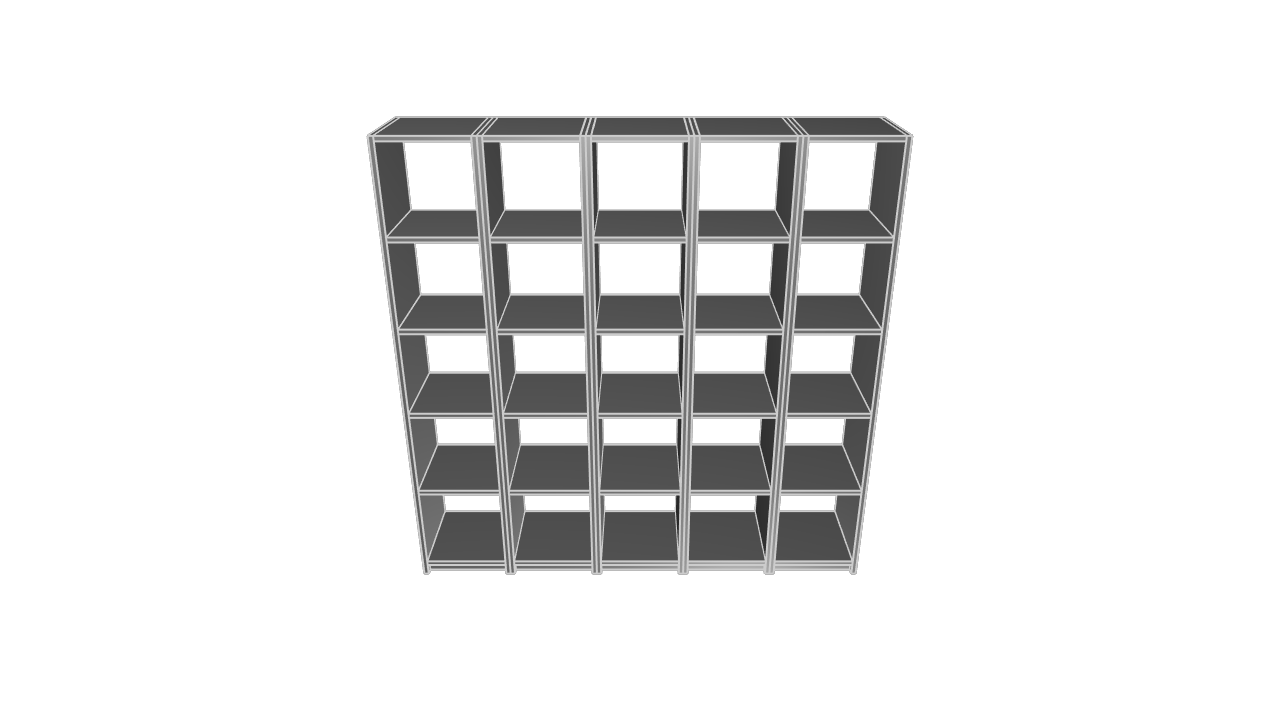

A parametric, horizontally stackable shelf system for furniture layout and prototyping.

// Linear Shelf System
// A parametric, horizontally stackable shelf system for furniture layout and prototyping.
// Categories: Maker, Construction

// This model generates a configurable number of narrow shelf units arranged side-by-side.
// Each unit includes:
// - Two vertical side panels
// - A floor plinth with toe kick
// - Multiple evenly spaced shelves (with optional top cover)
// All geometric parameters (unit width, height, depth, shelf count, spacing, and material thickness)
// are customizable, allowing for rapid iteration of layout concepts such as storage walls,
// room dividers, or library-style shelving.
// Designed for clean stacking, clarity in construction, and modular expansion.

@settings(defaultLengthUnit = m, kclVersion = 1.0)

unitCount = 5 // number of shelf units arranged side-by-side (horizontal repeat)


// --- Global Dimensions ---
unitWidth = 0.4 // overall external width of the shelf
unitHeight = 2 // total height including top and base
unitDepth = 0.4 // depth from front to back


shelfBoardCount = 5 // number of usable shelf boards (excludes top cover)


// --- Panel & Shelf Geometry ---
panelThickness = 0.02 // thickness of side panels and shelf boards
sidePanelOffset = unitWidth - panelThickness // distance between origin points of left and right panel


// --- Base Spacer (Plinth) ---
baseHeight = 0.05 // elevation of bottom plinth from ground
baseInset = 0.03 // inward offset at the front (toe kick for foot clearance)
baseWidth = unitWidth - (panelThickness * 2) // internal width of base element
baseDepth = unitDepth - baseInset // shallower depth than full unit


// --- Shelf Placement ---
shelfStartZ = baseHeight // Z elevation of the first shelf board
shelfThickness = panelThickness // shelf board thickness
shelfWidth = baseWidth // width same as base
shelfDepth = unitDepth // full shelf depth


totalShelfBoards = shelfBoardCount + 1 // includes top cover board
availableVerticalSpace = unitHeight - baseHeight - shelfThickness
shelfSpacing = availableVerticalSpace / shelfBoardCount // vertical distance between shelf boards


// --- Reference Plane ---
basePlane = startSketchOn(XY)

// --- Side Panels ---
// Left and right vertical structural walls.
sidePanelProfile = startProfile(basePlane, at = [-unitWidth / 2, 0])
  |> yLine(length = -unitDepth)
  |> xLine(length = panelThickness)
  |> yLine(length = unitDepth)
  |> close()
  |> patternLinear2d(
       %,
       instances = 2,
       distance = sidePanelOffset,
       axis = [1, 0],
     )
sidePanels = extrude(sidePanelProfile, length = unitHeight)

// --- Floor Base / Plinth ---
// Supporting base element between side panels.
baseProfile = startProfile(basePlane, at = [-baseWidth / 2, 0])
  |> yLine(length = -baseDepth)
  |> xLine(length = baseWidth)
  |> yLine(length = baseDepth)
  |> close()
baseBlock = extrude(baseProfile, length = baseHeight)

// --- First Shelf Board ---
firstShelfPlane = offsetPlane(XY, offset = shelfStartZ)
firstShelfSketch = startSketchOn(firstShelfPlane)
firstShelfProfile = startProfile(firstShelfSketch, at = [-shelfWidth / 2, 0])
  |> yLine(length = -shelfDepth)
  |> xLine(length = shelfWidth)
  |> yLine(length = shelfDepth)
  |> close()
firstShelf = extrude(firstShelfProfile, length = shelfThickness)

// --- Shelf Stack ---
shelves = patternLinear3d(
  firstShelf,
  instances = totalShelfBoards,
  distance = shelfSpacing,
  axis = [0, 0, 1],
)

// --- Modular Shelf Wall ---
// Repeats the complete shelf unit horizontally to create a wall of shelving.
// Includes side panels, base block, and shelf stack in each instance.


modularShelfArray = patternLinear3d(
  [sidePanels, baseBlock, shelves],
  instances = unitCount,
  distance = unitWidth,
  axis = [1, 0, 0],
)
