brake-rotor

// Brake Rotor

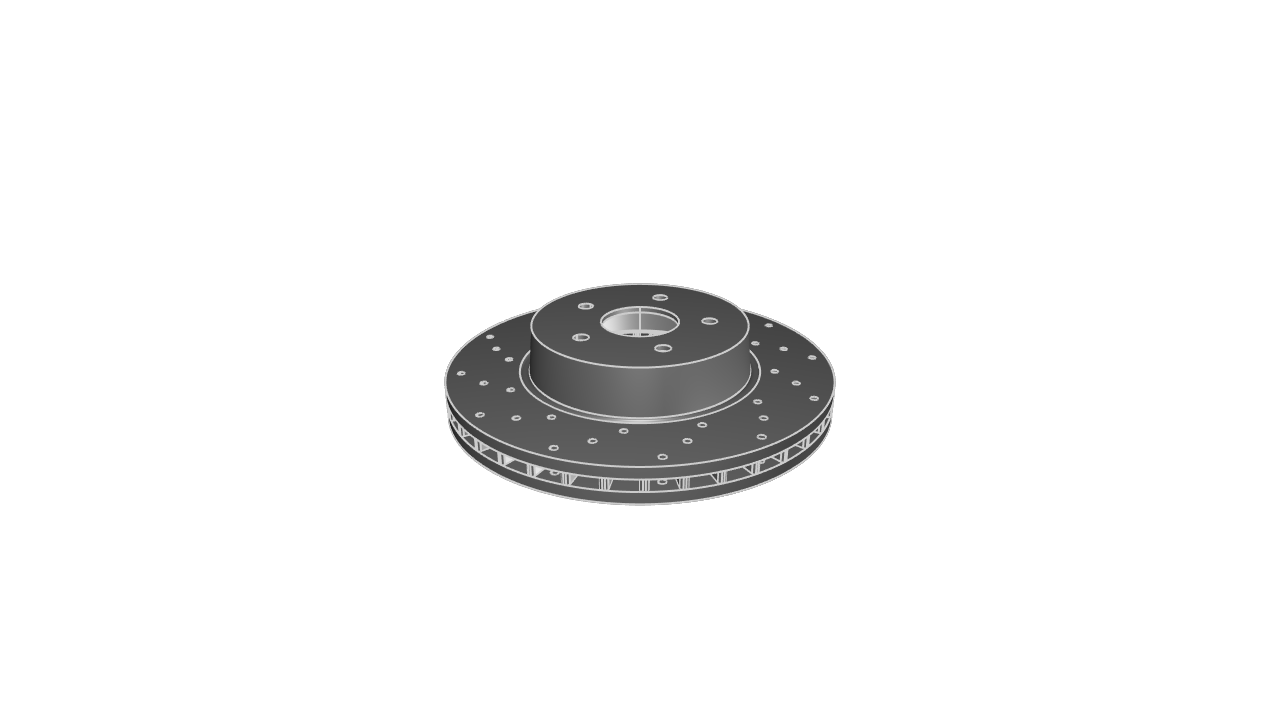

// A 320mm vented brake disc (rotor), with straight vanes, 30mm thick. The disc bell should accommodate 5 M12 wheel studs on a 114.3mm pitch circle diameter.




@settings(defaultLengthUnit = mm)

// Define parameters.
dDisc = 320
dPitchCircle = 114.3
dBore = 64
nStuds = 5
dStudDrilling = 12.5 // M12
hFrictionSurface = 60
tDiscHalf = 10

// Vent parameters.
tVent = 10
wVent = 6
rVentFillet = 2
nVentBosses = 36

// Drilling parameters.
dDrillDia = 6
aBase = 90
aSweep = 30
nArcs = 12

// Bell parameters.
aDraftBell = 5
tBell = 5 // Wall thickness.
hBellAboveDiscFace = 40
hBellSubflush = 4
wUndercut = 8

fn drillHole(activeSketch, t) {
  // Sketch a vent hole at line parameter value t on an arc drawn across the disc surface.
  rInner = dDisc / 2 - hFrictionSurface
  rOuter = dDisc / 2

  aStart = aBase
  aEnd = aBase - aSweep

  // Linear interpolation of radius.
  rCurrent = rInner + t * (rOuter - rInner)

  // Linear interpolation of angle.
  aCurrent = aStart + t * (aEnd - aStart)

  // Calculate position.
  xCenter = rCurrent * cos(aCurrent)
  yCenter = rCurrent * sin(aCurrent)

  // Draw.
  drillCircle = circle(activeSketch, center = [xCenter, yCenter], radius = dDrillDia / 2)
  return drillCircle
}

fn createDiscHalf(plane, dDiscParam, hFrictionSurfaceParam, tDiscHalfParam) {
  // Create a disc half with a vent hole pattern.
  sketchFace = startSketchOn(plane)
  profileFace = circle(sketchFace, center = [0, 0], radius = dDiscParam / 2)
    |> subtract2d(tool = circle(sketchFace, center = [0, 0], radius = dDiscParam / 2 - hFrictionSurfaceParam))

  // Create three circles at t = 0, 0.5, and 1
  hole1 = drillHole(activeSketch = sketchFace, t = 0.2)
  hole2 = drillHole(activeSketch = sketchFace, t = 0.5)
  hole3 = drillHole(activeSketch = sketchFace, t = 0.8)

  // Pattern and cut.
  holes = patternCircular2d(
    [hole1, hole2, hole3],
    instances = nArcs,
    center = [0, 0],
    arcDegrees = 360,
    rotateDuplicates = true,
  )
  profileDrilled = subtract2d(profileFace, tool = holes)

  // Extrude.
  discHalf = extrude(profileFace, length = tDiscHalfParam)
  return discHalf
}

// ---------------------------------------------------------------------------------------------------------------------

// Create inboard half.
discInboard = createDiscHalf(
  plane = XY,
  dDiscParam = dDisc,
  hFrictionSurfaceParam = hFrictionSurface,
  tDiscHalfParam = tDiscHalf,
)

// Create vents.
planeVent = offsetPlane(XY, offset = tDiscHalf)
sketchVent = startSketchOn(planeVent)
profileVent = startProfile(sketchVent, at = [-wVent, dDisc / 2])
  |> angledLine(angle = 0, length = wVent, tag = $rectangleSegmentA001)
  |> angledLine(angle = segAng(rectangleSegmentA001) - 90, length = hFrictionSurface, tag = $seg02)
  |> angledLine(angle = segAng(rectangleSegmentA001), length = -segLen(rectangleSegmentA001), tag = $seg03)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)], tag = $seg01)
  |> close()

ventPad = extrude(profileVent, length = tVent)
  |> fillet(
       radius = rVentFillet,
       tags = [
         getCommonEdge(faces = [seg01, rectangleSegmentA001]),
         getCommonEdge(faces = [seg02, rectangleSegmentA001]),
         getCommonEdge(faces = [seg01, seg03]),
         getCommonEdge(faces = [seg03, seg02])
       ],
     )
ventSet = patternCircular3d(
  ventPad,
  instances = nVentBosses,
  axis = [0, 0, 1],
  center = [0, 0, tDiscHalf],
  arcDegrees = 360,
  rotateDuplicates = true,
)

// Create outboard half.
planeOutboard = offsetPlane(XY, offset = tDiscHalf + tVent)
discOutboard = createDiscHalf(
  plane = planeOutboard,
  dDiscParam = dDisc,
  hFrictionSurfaceParam = hFrictionSurface,
  tDiscHalfParam = tDiscHalf,
)

// Now create bell.
rCenter = dDisc / 2 - hFrictionSurface - wUndercut
rBore = dBore / 2
lDraftExterior = hBellAboveDiscFace / tan(90 - aDraftBell)
lDraftInterior = (hBellAboveDiscFace - tBell) / tan(90 - aDraftBell)

// Inner and outer radius of outboard face of disc bell.
rOuter = rCenter - lDraftExterior - rBore
rInner = rOuter + lDraftExterior - (tBell + lDraftInterior)

sketchDiscBell = startSketchOn(-YZ)
bodyDiscBell = startProfile(
       sketchDiscBell,
       at = [
         -dDisc / 2 + hFrictionSurface,
         tDiscHalf * 2 + tVent
       ],
     )
  |> arc(
       %,
       angleStart = -180,
       angleEnd = 0,
       radius = wUndercut / 2,
     )
  |> line(end = [lDraftExterior, hBellAboveDiscFace])
  |> xLine(length = rOuter, tag = $seg04)
  |> yLine(length = -tBell)
  |> xLine(length = -rInner)
  |> line(end = [-lDraftInterior, -hBellAboveDiscFace])
  |> line(end = [0, -2]) // Wall thickness.
  |> xLine(length = -1 * (tBell + wUndercut))
  |> close(%)
  |> revolve(axis = Y)

// Drill lug holes.
sketchLugs = startSketchOn(bodyDiscBell, face = seg04)
profileStud = circle(sketchLugs, center = [0, dPitchCircle / 2], radius = dStudDrilling / 2)
  |> patternCircular2d(
       %,
       instances = nStuds,
       center = [0, 0],
       arcDegrees = 360,
       rotateDuplicates = true,
     )

clearance = 2 // Some margin on negative extrude.
lugs = extrude(profileStud, length = -1 * (tBell + clearance))
