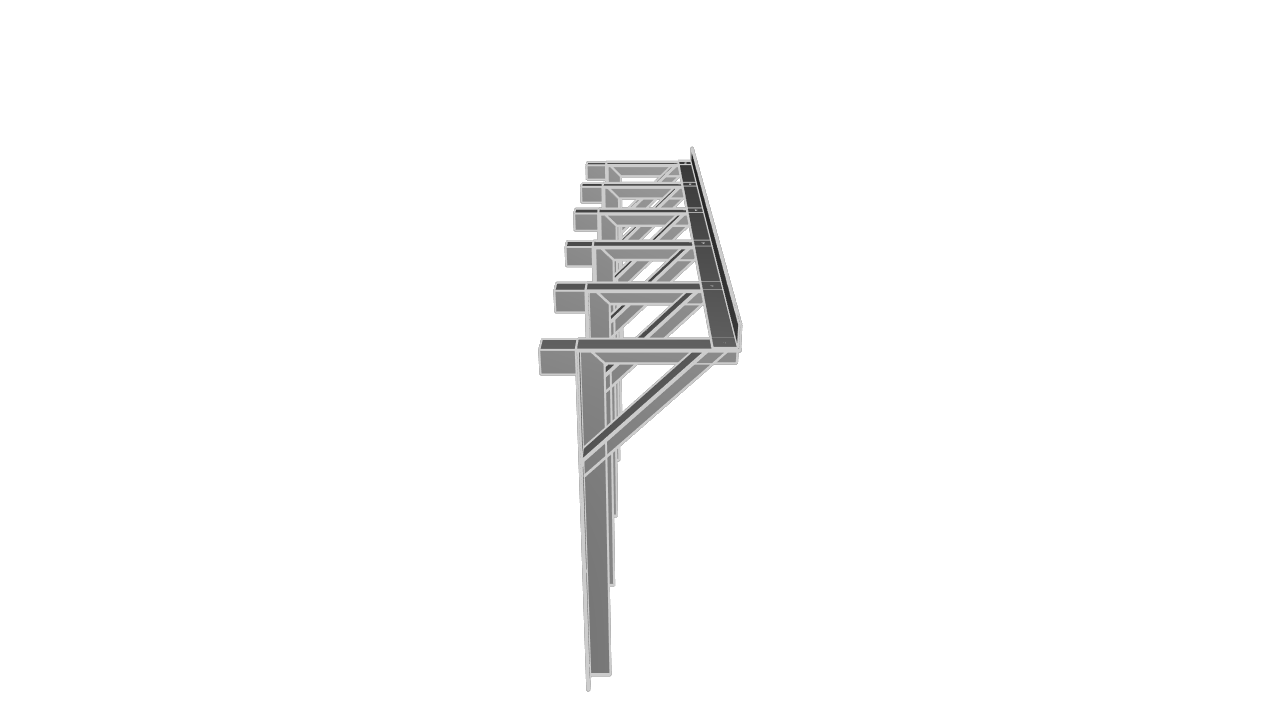

// Gallows Bracket lib
// Supporting library for the gallows bracket

export fn angleIron(length, thickness, width, miterStart, miterEnd) {
  assert(miterStart, isGreaterThan = -90deg, isLessThan = 90deg)
  assert(miterEnd, isGreaterThanOrEqual = -90deg, isLessThan = 90deg)

  csgFriendlyOffset = 1
  length002 = -1 * (width - thickness)
  length001 = -1 * (width - thickness)
  sketch001 = startSketchOn(-XZ)
  profile001 = startProfile(sketch001, at = [0, 0])
    |> xLine(length = width, tag = $baseSegment)
    |> yLine(length = -thickness)
    |> xLine(length = length001)
    |> yLine(length = length002)
    |> xLine(length = -thickness)
    |> line(endAbsolute = [profileStartX(%), profileStartY(%)], tag = $seg01)
    |> close()
  extrudedSolid = extrude(profile001, length = length + csgFriendlyOffset * 2)

  // Start a new sketch on the tagged face of the extrusion
  ironWithStartMiter = if miterStart != 0 {
    miterStartSketch = startSketchOn(XY)
    miterStartProfile = if miterStart > 0 {
      startProfile(
             miterStartSketch,
             at = [
               1 - (1 * sin(miterStart)),
               1 - (1 * cos(miterStart))
             ],
           )
        |> angledLine(angle = -180deg - miterStart, length = (width + csgFriendlyOffset) / cos(miterStart))
        |> yLine(endAbsolute = profileStartY() - 1)
        |> xLine(endAbsolute = profileStartX())
        |> close()
    } else {
      startProfile(
             miterStartSketch,
             at = [
               -width - 1 - (1 * sin(miterStart)),
               1 - (1 * cos(miterStart))
             ],
           )
        |> angledLine(angle = -miterStart, length = (width + csgFriendlyOffset) / cos(miterStart))
        |> yLine(endAbsolute = profileStartY() - 1)
        |> xLine(endAbsolute = profileStartX())
        |> close()
    }
    miterStartTool = extrude(miterStartProfile, length = -width - 2)
      |> translate(x = 0, y = 0, z = 1)

miterStartTool
    subtract(extrudedSolid, tools = miterStartTool)
  } else {
    extrudedSolid
  }

  finishedIron = if miterEnd != 0 {
    miterEndSketch = startSketchOn(XY)
    miterEndProfile = if miterEnd > 0 {
      startProfile(
             miterEndSketch,
             at = [
               1 - (1 * sin(miterEnd)),
               length + 1 + 1 * cos(miterEnd)
             ],
           )
        |> angledLine(angle = 180deg + miterEnd, length = (width + csgFriendlyOffset) / cos(miterEnd))
        |> yLine(endAbsolute = profileStartY() + 1)
        |> xLine(endAbsolute = profileStartX())
        |> close()
    } else {
      startProfile(
             miterEndSketch,
             at = [
               -width - 1 - (1 * sin(miterEnd)),
               length + 1 + 1 * cos(miterEnd)
             ],
           )
        |> angledLine(angle = miterEnd, length = (width + csgFriendlyOffset) / cos(miterEnd))
        |> yLine(endAbsolute = profileStartY() + 1)
        |> xLine(endAbsolute = profileStartX())
        |> close()
    }
    miterEndTool = extrude(miterEndProfile, length = -width - 2)
      |> translate(x = 0, y = 0, z = 1)
miterEndTool
    subtract(ironWithStartMiter, tools = miterEndTool)
  } else {
    ironWithStartMiter
  }
  return finishedIron
}

export fn gallowsBracket(depth, height, ironWidth, ironThickness) {
  boltRadius = 4
  // Recommendations from drawings
  bottomBoltOffset = 75
  distanceBetweenBolts = 450
  assert(height, isGreaterThan = bottomBoltOffset + distanceBetweenBolts, error = "You must have at least 525mm of height to get sufficient bolt spacing")

  vertical = angleIron(
         length = height,
         width = ironWidth,
         thickness = ironThickness,
         miterStart = 0deg,
         miterEnd = 45deg,
       )
    |> rotate(roll = 90, yaw = 180)
  verticalHolesNeeded = ceil((height - bottomBoltOffset) / distanceBetweenBolts)
  verticalHolesSketch = offsetPlane(YZ, offset = -1)
  verticalHoles = circle(verticalHolesSketch, center = [-ironWidth / 2, 75], radius = boltRadius + 0.5)
    |> patternLinear2d(instances = verticalHolesNeeded, distance = (height - bottomBoltOffset) / verticalHolesNeeded, axis = [0, 1])
    |> extrude(length = ironThickness + 2)

  verticalWithHoles = reduce(
    verticalHoles,
    initial = vertical,
    f = fn(@hole, accum) {
      return subtract(accum, tools = hole)
    },
  )

  horizontal = angleIron(
         length = depth,
         width = ironWidth,
         thickness = ironThickness,
         miterStart = 45deg,
         miterEnd = 0deg,
       )
    |> rotate(pitch = 270, yaw = -90)
    |> translate(z = height + 1, global = true)
  horizontalHolesSketch = offsetPlane(XY, offset = height - ironThickness)
  horizontalHoles = circle(
         horizontalHolesSketch,
         center = [
           depth - (ironWidth / 2),
           -ironWidth / 2
         ],
         radius = boltRadius + 0.5,
       )
    |> extrude(length = ironThickness + 2)
  horizontalWithHoles = subtract(horizontal, tools = horizontalHoles)

  strutLength = sqrt(2 * (min([height, depth]) - ironThickness) ^ 2)
  strut = angleIron(
         length = strutLength,
         width = ironWidth - ironThickness,
         thickness = ironThickness,
         miterStart = -45deg,
         miterEnd = -45deg,
       )
    |> rotate(pitch = 270deg, yaw = -90deg)
    |> translate(x = -strutLength - 1, z = ironWidth - ironThickness, global = true)
    |> rotate(pitch = -45deg, global = true)
    |> translate(
         y = -ironThickness,
         x = depth,
         z = height - ironThickness,
         global = true,
       )

  legSketch = startSketchOn(-YZ)
  leg = startProfile(legSketch, at = [0, 0])
    |> angledLine(angle = 0deg, length = ironWidth, tag = $rectangleSegmentA001)
    |> angledLine(angle = segAng(rectangleSegmentA001) + 90deg, length = ironWidth)
    |> angledLine(angle = segAng(rectangleSegmentA001), length = -segLen(rectangleSegmentA001))
    |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
    |> close()
    |> extrude(length = 100)
    |> translate(z = height - ironWidth, global = true)

  // Leg to insert into party wall
  return [
    verticalWithHoles,
    horizontalWithHoles,
    strut,
    leg
  ]
}
