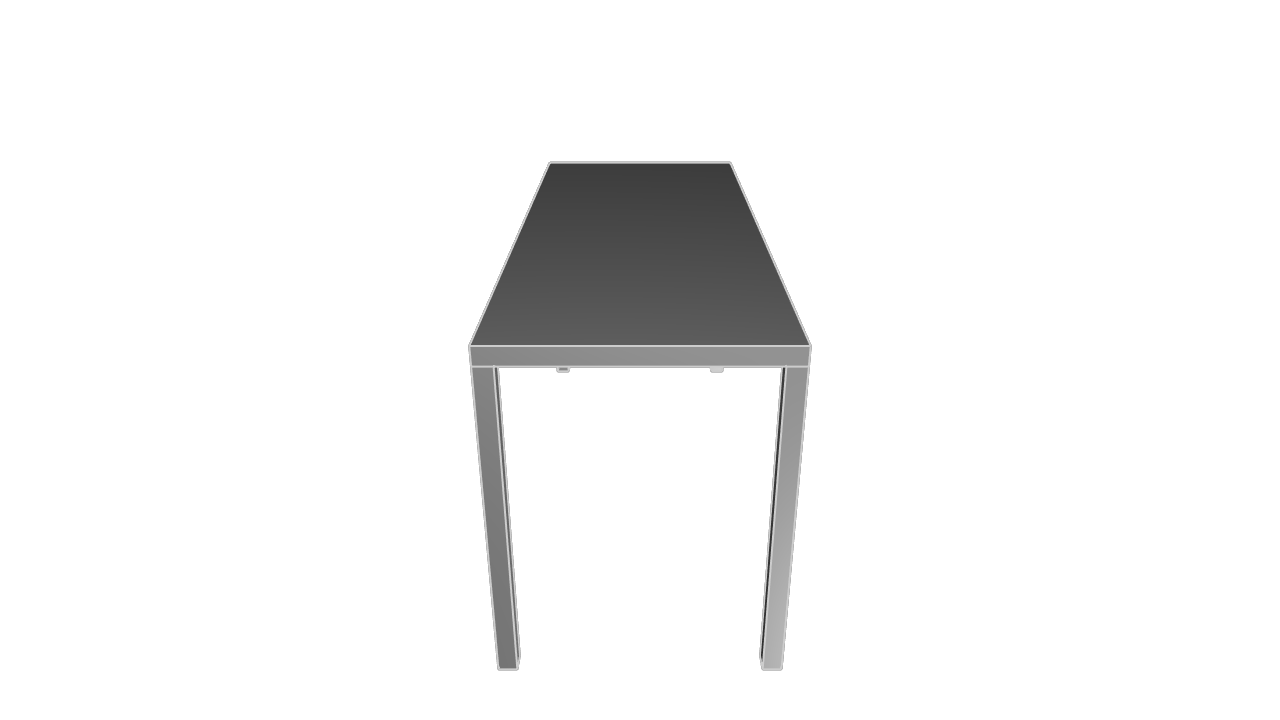

Simple metal table with rectangular tabletop and four legs with a square section

// Rectangle Table
// Simple metal table with rectangular tabletop and four legs with a square section
// Categories: Construction, Maker

@settings(defaultLengthUnit = mm)

// Parameters
tableHeight = 750
tableLength = 1500
tableWidth = 600
tableTopThickness = 40
legThickness = 40

// Derived parameters
legHeight = tableHeight - tableTopThickness

// Tabletop
tableTopPlane = offsetPlane(XY, offset = tableHeight)
tableTopSketch = startSketchOn(tableTopPlane)
tableTopProfile = startProfile(tableTopSketch, at = [0, 0])
  |> yLine(length = tableLength)
  |> xLine(length = tableWidth)
  |> yLine(length = -tableLength)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
tableTopExtrude = extrude(tableTopProfile, length = -tableTopThickness)

// Leg
legSketch = startSketchOn(XY)
legProfile = startProfile(legSketch, at = [0, 0])
  |> yLine(length = legThickness)
  |> xLine(length = legThickness)
  |> yLine(length = -legThickness)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
legExtrude = extrude(legProfile, length = legHeight)

leg2 = clone(legExtrude)
  |> translate(x = tableWidth - legThickness, y = 0, z = 0)
leg3 = clone(legExtrude)
  |> translate(x = 0, y = tableLength - legThickness, z = 0)
leg4 = clone(legExtrude)
  |> translate(x = tableWidth - legThickness, y = tableLength - legThickness, z = 0)
