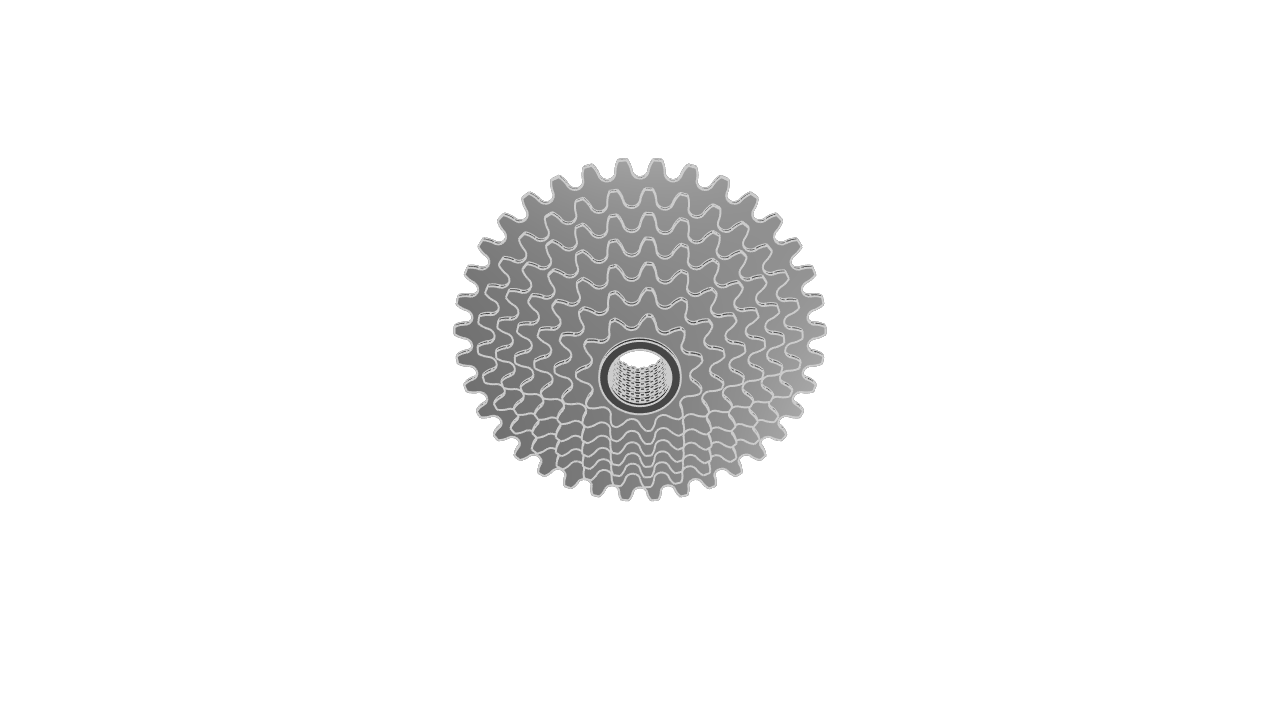

A sprocket cassette is a stack of individual sprockets that mount together on a splined hub to provide multiple gear ratios

// Sprocket Cassette
// A sprocket cassette is a stack of individual sprockets that mount together on a splined hub to provide multiple gear ratios
// Categories: Automotive

// Set Units
@settings(defaultLengthUnit = in)

// Define parameters
// #25 chain size
chainPitch = 1 / 4
rollerWidth = 3 / 32
rollerDiameter = 0.13
pinDiameter = 3 / 32
shaftDiameter = 12mm

// Define a function to create a sprocket with a specific number of teeth
fn sprocket(@speed, nTeeth) {
  pitchDiameter = chainPitch * 1 / sin(180deg / nTeeth)

  // Sketch the central mounting spine to be cut from each sprocket profile
  spline = startSketchOn(XZ)
    |> startProfile(at = [shaftDiameter / 2, 0])
    |> arc(angleStart = 0, angleEnd = 10, radius = shaftDiameter / 2)
    |> line(endAbsolute = polar(angle = 10deg, length = shaftDiameter / 2 - 0.01))
    |> arc(angleStart = 10, angleEnd = 20, radius = shaftDiameter / 2 - 0.01)
    |> line(endAbsolute = polar(angle = 20deg, length = shaftDiameter / 2))
    |> patternCircular2d(instances = 360 / 20, center = [0, 0])
    |> close()

  // build the sprocket
  sprocket = startSketchOn(offsetPlane(XZ, offset = -speed * rollerWidth))
    |> startProfile(at = [
         (pitchDiameter - rollerDiameter) / 2,
         0
       ])
    |> arc(angleStart = 180, angleEnd = 90 + 360 / nTeeth, diameter = rollerDiameter)
    |> tangentialArc(angle = 28deg, radius = chainPitch - (rollerDiameter / 2))
    |> arc(interiorAbsolute = polar(angle = 170 / nTeeth, length = sqrt(lastSegX() ^ 2 + lastSegY() ^ 2)), endAbsolute = polar(angle = 180 / nTeeth, length = sqrt(lastSegX() ^ 2 + lastSegY() ^ 2)))
    |> mirror2d(axis = X)
    |> patternCircular2d(instances = nTeeth, center = [0, 0])
    |> close()
    |> subtract2d(tool = spline)
    |> extrude(length = rollerWidth / 2)

  // Place a mounting spacer between each sprocket body
  spacer = startSketchOn(sprocket, face = END)
    |> circle(center = [0, 0], diameter = shaftDiameter * 1.3)
    |> subtract2d(tool = circle(center = [0, 0], diameter = shaftDiameter))
    |> extrude(length = rollerWidth / 2, method = NEW)
    |> appearance(color = "#0f0f0f")

  return sprocket
}

// Create a 7-speed cassette from 11 to 36 teeth
reduce(
  [11, 15, 19, 23, 27, 31, 36],
  initial = 0_,
  f = fn(@nTeeth, accum) {
    // speed index is accum + 1 since accum starts at 0
    sprocket(accum + 1, nTeeth = nTeeth)
    return accum + 1
  },
)
