cylinder

cylinder

KCL

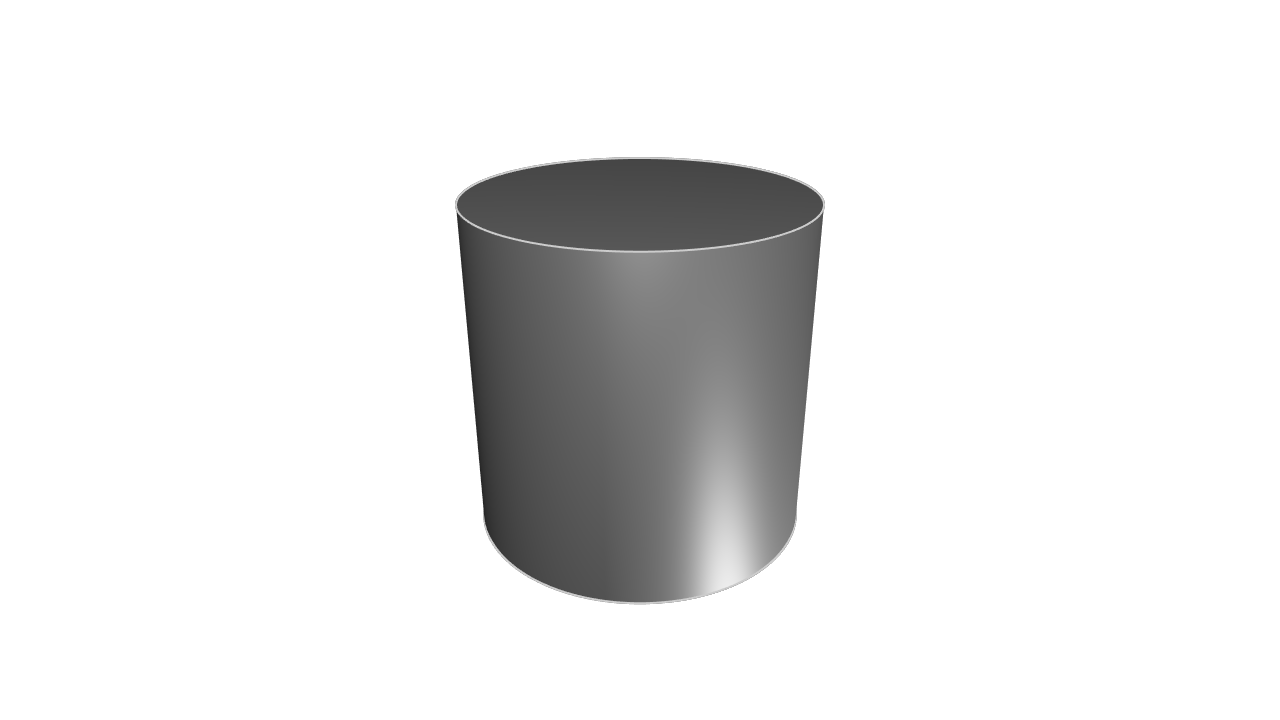

// Cylinder
// A cylinder is a primitive shape defined by its diameter and length




@settings(defaultLengthUnit = mm)

// Define parameters
length = 10
diameter = 10

// create a sketch for the cylinder profile on the XY plane
sketch = startSketchOn(XY)

// create the profile centered at the origin
profile = startProfile(sketch, at = [0, 0])
  |> circle(center = profileStart(), radius = diameter / 2)

// extrude the profile to create the box
cylinder = extrude(profile, length = length)
