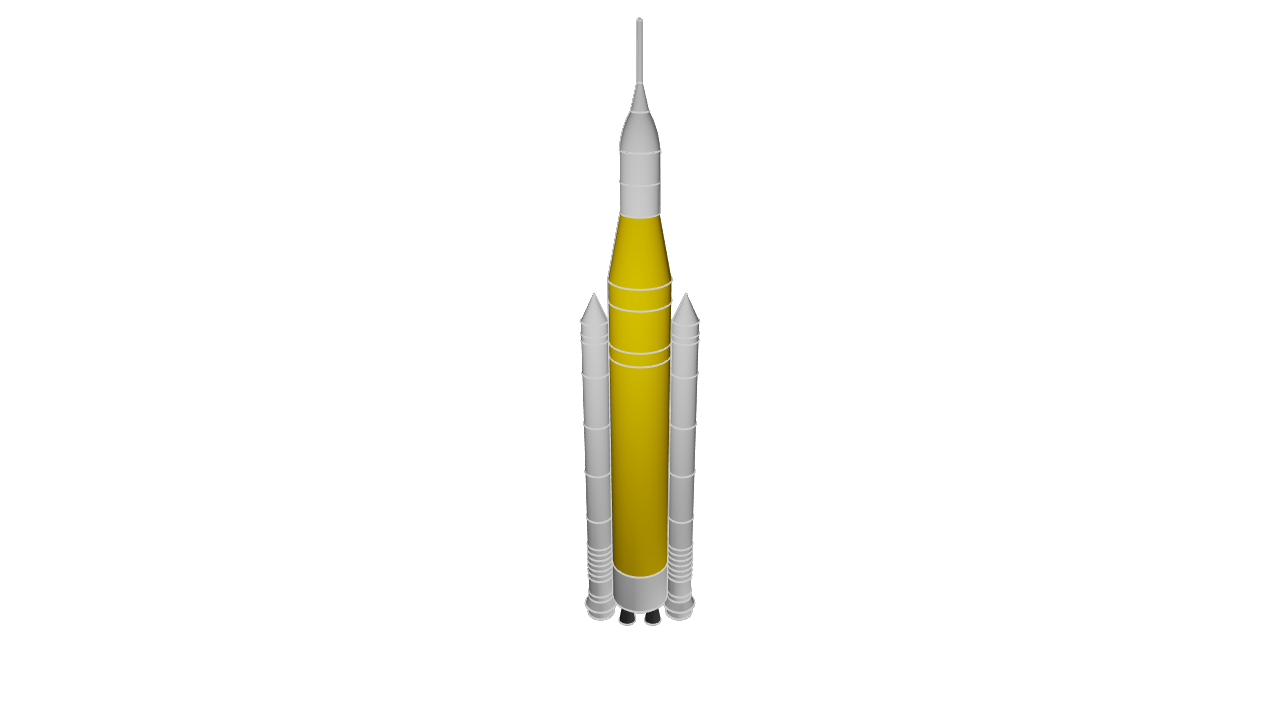

Modular construction of the iconic multi-stage rocket using parametric and revolve-based shapes

// Artemis SLS Rocket
// Modular construction of the iconic multi-stage rocket using parametric and revolve-based shapes
// Categories: Aerospace

@settings(defaultLengthUnit = m, kclVersion = 1.0)

// RS-25 engine (x4)
// Artemis uses four RS-25s — staged-combustion engines flight-proven on over 135 space shuttle flights.
// visible lower black part (the nozzle extension) is roughly 2.9 meters tall and 2.4 meters wide at the base
rs25EngineSketch = startSketchOn(XZ)
rs25EngineProfile = startProfile(rs25EngineSketch, at = [0, 0])
  |> xLine(length = -1.2)
  |> arc(interiorAbsolute = [-1, 1.5], endAbsolute = [-0.6, 2.9])
  |> xLine(length = 0.6)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
rs25EngineBody = revolve(rs25EngineProfile, angle = 360, axis = Y)
rs25EnginePaintwork = appearance(rs25EngineBody, color = "#080808")
rs25EngineOne = translate(
  rs25EngineBody,
  x = 2,
  y = 2,
  z = 0,
)
rs25EngineTwo = clone(rs25EngineBody)
rs25EngineTwoRotate = rotate(
  rs25EngineTwo,
  roll = 0,
  pitch = 0,
  yaw = 90,
)
rs25EngineThree = clone(rs25EngineBody)
rs25EngineThreeRotate = rotate(
  rs25EngineThree,
  roll = 0,
  pitch = 0,
  yaw = 180,
)
rs25EngineFour = clone(rs25EngineBody)
rs25EngineFourRotate = rotate(
  rs25EngineFour,
  roll = 0,
  pitch = 0,
  yaw = 270,
)

// Engine Section
// Outer diameter: 8.4 meters (27.6 feet) — same as the rest of the core stage
// Height (engine section only): approximately 10 meters (33 feet)
engineSectionPlane = offsetPlane(XY, offset = 2.9)
engineSectionSketch = startSketchOn(engineSectionPlane)
engineSectionProfile = circle(
  engineSectionSketch,
  center = [0, 0],
  radius = 8.4 / 2,
  tag = $engineSectionLowerSegment,
)
engineSectionBody = extrude(engineSectionProfile, length = 10 - 2.9, tagStart = $capStart001)
engineSectionLowerEdge = chamfer(
  engineSectionBody,
  length = 0.5,
  tags = [
    getCommonEdge(faces = [engineSectionLowerSegment, capStart001])
  ],
)
engineSectionPaintwork = appearance(engineSectionBody, color = "#ffffff")

// Core Stage
// The core stage measures 213 feet (65 meters) long by 28 feet (8.4 meters) in diameter.
coreStageSketch = startSketchOn(XZ)
coreStageProfile = startProfile(coreStageSketch, at = [0, 10])
  |> xLine(length = -4.2)
  |> yLine(length = 35)
  |> yLine(length = 2)
  |> yLine(length = 6)
  |> line(endAbsolute = [-4.2, 56])
  |> line(endAbsolute = [-2.5, 65]) // Launch vehicle stage adapter
  |> xLine(length = 2.5)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
coreStageBody = revolve(coreStageProfile, angle = 360, axis = Y)
coreStagePaintwork = appearance(coreStageBody, color = "#ff9500")

// ICPS
// Height 13.7, Diameter 5.0
icpsSectionPlane = offsetPlane(XY, offset = 65)
icpsSectionSketch = startSketchOn(icpsSectionPlane)
icpsSectionProfile = circle(icpsSectionSketch, center = [0, 0], radius = 5 / 2)
icpsSectionBody = extrude(icpsSectionProfile, length = 4)
icpsSectionPaintwork = appearance(icpsSectionBody, color = "#ffffff")

// ESA Service Module
// Height 4, Diameter 4.0
esaServiceModulePlane = offsetPlane(XY, offset = 69)
esaServiceModuleSketch = startSketchOn(esaServiceModulePlane)
esaServiceModuleProfile = circle(esaServiceModuleSketch, center = [0, 0], radius = 5 / 2)
esaServiceModuleBody = extrude(esaServiceModuleProfile, length = 4)
esaServiceModulePaintwork = appearance(esaServiceModuleBody, color = "#ffffff")

// Orion Crew Module
orionCrewModuleSketch = startSketchOn(XZ)
orionCrewModuleProfile = startProfile(orionCrewModuleSketch, at = [0, 73.5])
  |> xLine(length = -2.2)
  |> line(end = [1.4, 2.8])
  |> xLine(length = 0.8)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
orionCrewModuleBody = revolve(orionCrewModuleProfile, angle = 360, axis = Y)
orionCrewModulePaintwork = appearance(orionCrewModuleBody, color = "#0a0a0a")

// Antenna Mast
antennaSketch = startSketchOn(XZ)
antennaProfile = startProfile(antennaSketch, at = [0, 81])
  |> xLine(length = -0.3)
  |> yLine(length = 7)
  |> line(end = [0.3, 0.3])
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
antennaBody = revolve(antennaProfile, angle = 360, axis = Y)
antennaPaintwork = appearance(antennaBody, color = "#ffffff")

// Solid rocket booster
// The SLS rocket booster is the biggest and most powerful solid propellant booster ever built for flight.
// Height: 54 meters / Diameter: 3.71 meters
solidRocketBoosterSketch = startSketchOn(XZ)
solidRocketBoosterProfile = startProfile(solidRocketBoosterSketch, at = [0, 0])
  |> xLine(length = -2)
  |> line(end = [0.4, 1.5])
  |> line(end = [-0.8, 0.2])
  |> line(endAbsolute = [-1.8, 3.2])
  |> yLine(length = 1)
  |> yLine(length = 3)
  |> yLine(length = 1)
  |> yLine(length = 1)
  |> yLine(length = 1)
  |> yLine(length = 1)
  |> yLine(length = 1)
  |> yLine(length = 1)
  |> yLine(length = 5)
  |> yLine(length = 8)
  |> yLine(length = 8)
  |> yLine(length = 8)
  |> yLine(length = 5)
  |> yLine(length = 1)
  |> line(endAbsolute = [-1.8, 50])
  |> line(endAbsolute = [0, 54])
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
solidRocketBoosterBody = revolve(solidRocketBoosterProfile, angle = 360, axis = Y)
solidRocketBoosterBodyPaintwork = appearance(solidRocketBoosterBody, color = '#FFFFFF')
solidRocketBoosterBodyLeft = translate(
  solidRocketBoosterBody,
  x = 6.2,
  y = 0,
  z = 0,
)
solidRocketBoosterBodyClone = clone(solidRocketBoosterBody)
solidRocketBoosterRight = rotate(
  solidRocketBoosterBodyClone,
  roll = 0,
  pitch = 0,
  yaw = 180,
)
sketch001 = startSketchOn(XZ)
profile001 = startProfile(sketch001, at = [0, 72.98])
  |> xLine(length = -2.49)
  |> arc(interiorAbsolute = [-1.98, 75.66], endAbsolute = [-1.11, 77.64])
  |> line(end = [0.8, 3.36])
  |> xLine(length = 0.31)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
revolve001 = revolve(profile001, angle = 360, axis = Y)
  |> appearance(%, color = '#FFFFFF')
