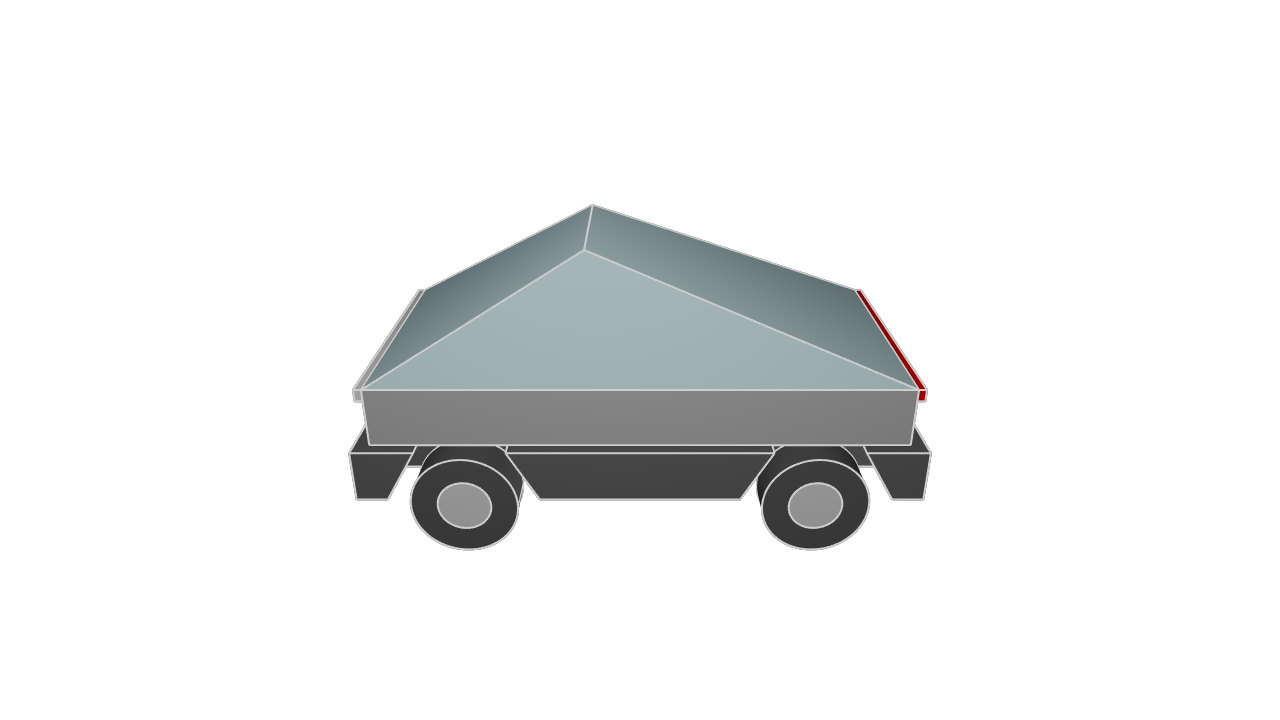

A simplified, parametric 3-D model of a low-poly toy cybertruck, intended for use as a game-ready asset, concept visualization, or real-time rendering demo.

// Stylized Toy Cybertruck
// A simplified, parametric 3-D model of a low-poly toy cybertruck, intended for use as a game-ready asset, concept visualization, or real-time rendering demo.
// Categories: Automotive, Maker

// The model includes:
// - A chassis block forming the vehicle’s base
// - Front and rear fenders with wheel cut-outs
// - Four detachable wheels (tire + hubcap)
// - An angular cabin defined by intersecting trapezoids
// - Sloped front, rear, and side panels
// - Flat front and rear light panels
//
// All major dimensions are parameterized for quick adjustments.
// Geometry prioritizes stylized clarity and clean topology over realism,
// making it suitable for games, educational tools, or prototyping environments.
// Set units and version

@settings(defaultLengthUnit = m, kclVersion = 1.0)

// Chassis dimensions
chassisLength = 3.5 // total vehicle length
chassisWidth = 1.8 // total vehicle width
chassisHeight = 0.4 // height of main chassis block


// Wheel configuration
wheelBase = 2.3 // distance between front and rear wheels
wheelDiameter = 0.7 // outer diameter of tire
wheelWidth = chassisWidth * 0.15 // width of tire


// Fender geometry
fenderInset = 0.1 // horizontal gap between chassis and fender
fenderLength = chassisLength + fenderInset * 2 // overall fender span along length
fenderWidth = chassisWidth + fenderInset * 2 // overall fender span across width
fenderHeight = 0.35 // height of the fender block


// Elevation levels
groundClearance = 0.4 // vertical gap between ground and bottom of fender
chassisElevation = groundClearance + fenderHeight // bottom of the main chassis


// Hood and cabin
hoodLength = 0 // front hood segment length
cabinElevation = chassisElevation + chassisHeight // vertical start of cabin
cabinHeight = 0.8 // total cabin height
windPanelShift = chassisLength * 0.4 // slant of windshield
rearPanelShift = chassisLength - windPanelShift // slant of rear cabin wall
sidePanelShift = chassisWidth * 0.2 // slant of side cabin wall


// Front lights
headlightsElevation = cabinElevation
headlightsDistance = chassisWidth * 0.75
headlightsHeight = chassisHeight * 0.2
headlightsWidth = chassisWidth
lightDepth = 0.05 // extrusion depth for headlights and taillights


// Rear lights
taillightsOffset = 0
taillightsHeight = chassisHeight * 0.2
taillightsWidth = chassisWidth
taillightsElevation = cabinElevation
taillightsDistance = chassisWidth - (taillightsOffset * 2) - taillightsWidth
taillightsSize = chassisHeight * 0.8

// Reference planes
chassisPlane = offsetPlane(XZ, offset = chassisWidth / 2) // profile plane for chassis and cabin
fenderPlane = offsetPlane(XZ, offset = chassisWidth / 2 + fenderInset) // profile plane for outer fenders


// Fenders
// Protective side covers that house the wheels.
// Positioned slightly wider than the chassis to suggest ruggedness.
fenderProfile = startProfile(fenderPlane, at = [-fenderLength / 2, groundClearance])
  |> yLine(length = fenderHeight)
  |> xLine(length = fenderLength)
  |> yLine(length = -fenderHeight)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()

fenderBody = extrude([fenderProfile], length = -chassisWidth - (fenderInset * 2))
  |> appearance(%, color = "#e0e0e0")

// Wheel Cutouts
// Hexagonal recesses subtracted from the fenders to make space for the wheels.
fn makeWheelCutout(size) {
  wheelSketch = startSketchOn(XZ)
  cutOutProfile = polygon(
    wheelSketch,
    radius = size * 0.75,
    numSides = 6,
    center = [0, size / 2],
  )
  cutOutVoid = extrude(cutOutProfile, length = -wheelWidth * 1.5)
  return cutOutVoid
}
frontLeftCutout = makeWheelCutout(size = wheelDiameter)
  |> translate(x = -wheelBase / 2, y = -fenderWidth / 2, z = 0)
rearLeftCutout = makeWheelCutout(size = wheelDiameter)
  |> translate(x = wheelBase / 2, y = -fenderWidth / 2, z = 0)
frontRightCutout = makeWheelCutout(size = wheelDiameter)
  |> rotate(
       %,
       roll = 0,
       pitch = 0,
       yaw = 180,
     )
  |> translate(x = wheelBase / 2, y = -fenderWidth / 2, z = 0)
rearRightCutout = makeWheelCutout(size = wheelDiameter)
  |> rotate(
       %,
       roll = 0,
       pitch = 0,
       yaw = 180,
     )
  |> translate(x = -wheelBase / 2, y = -fenderWidth / 2, z = 0)
fenderWithCutouts = subtract(
       [fenderBody],
       tools = [
         frontLeftCutout,
         rearLeftCutout,
         frontRightCutout,
         rearRightCutout
       ],
     )
  |> appearance(%, color = "#1a1a1a")

// Chassis
// The main structural body of the vehicle, sitting above the fenders.
// Defines the base frame on which the cabin and roof are mounted.
chassisProfile = startProfile(chassisPlane, at = [-chassisLength / 2, chassisElevation])
  |> yLine(length = chassisHeight)
  |> xLine(length = chassisLength)
  |> yLine(length = -chassisHeight)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()

chassis = extrude([chassisProfile], length = -chassisWidth)
  |> appearance(%, color = "#757575") // gray body


// Cabin (angular upper body)
// Defined by intersecting sloped front, back, and side profiles.
// Emulates the faceted, wedge-like shape of the Cybertruck.
cabinSideProfile = startProfile(
       chassisPlane,
       at = [
         -chassisLength / 2 + hoodLength,
         cabinElevation
       ],
     )
  |> line(end = [windPanelShift, cabinHeight])
  |> line(end = [rearPanelShift, -cabinHeight])
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()

cabinSideBody = extrude([cabinSideProfile], length = -chassisWidth)

cabinFrontPlane = offsetPlane(YZ, offset = -chassisLength * 0.55)
cabinFrontSketch = startSketchOn(cabinFrontPlane)
cabinFrontProfile = startProfile(cabinFrontSketch, at = [-chassisWidth / 2, cabinElevation])
  |> line(end = [sidePanelShift, cabinHeight])
  |> xLine(length = chassisWidth - (sidePanelShift * 2))
  |> line(end = [sidePanelShift, -cabinHeight])
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
cabinFrontBody = extrude([cabinFrontProfile], length = chassisLength * 1.1)

cabinBody = intersect([cabinSideBody, cabinFrontBody])
  |> appearance(%, color = "#9ce8f2")

// Wheels
// Cylindrical wheels with a central hubcap detail.
// Created as separate parts and positioned under the fender cutouts.
fn wheelFn(diameter, width) {
  wheelSketch = startSketchOn(XZ)
  wheelProfile = circle(wheelSketch, center = [0, diameter / 2], radius = diameter / 2)
    |> subtract2d(%, tool = circle(wheelSketch, center = [0, diameter / 2], radius = diameter / 4))
  wheelTireBody = extrude(wheelProfile, length = -wheelWidth)
    |> appearance(%, color = "#141414")
  diskProfile = circle(wheelSketch, center = [0, diameter / 2], radius = diameter / 4)
  diskBody = extrude(diskProfile, length = -wheelWidth)
    |> appearance(%, color = "#d1d1d1")
  return [wheelTireBody, diskBody]
}
wheelFrontLeft = wheelFn(diameter = wheelDiameter, width = wheelWidth)
  |> translate(x = -wheelBase / 2, y = -fenderWidth / 2, z = 0)
wheelRearLeft = wheelFn(diameter = wheelDiameter, width = wheelWidth)
  |> translate(x = wheelBase / 2, y = -fenderWidth / 2, z = 0)
wheelFrontRight = wheelFn(diameter = wheelDiameter, width = wheelWidth)
  |> rotate(
       %,
       roll = 0,
       pitch = 0,
       yaw = 180,
     )
  |> translate(x = wheelBase / 2, y = -fenderWidth / 2, z = 0)
wheelRearRight = wheelFn(diameter = wheelDiameter, width = wheelWidth)
  |> rotate(
       %,
       roll = 0,
       pitch = 0,
       yaw = 180,
     )
  |> translate(x = -wheelBase / 2, y = -fenderWidth / 2, z = 0)

// Headlights
// Two circular front lights mounted on the front face of the chassis.
headlightsPlane = offsetPlane(YZ, offset = -chassisLength / 2)
headlightsSketch = startSketchOn(headlightsPlane)
headlightsProfile = startProfile(headlightsSketch, at = [-chassisWidth / 2, headlightsElevation])
  |> yLine(length = -headlightsHeight)
  |> xLine(length = headlightsWidth)
  |> yLine(length = headlightsHeight)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
headlightsBody = extrude(headlightsProfile, length = -lightDepth)
  |> appearance(%, color = "#ededed")

// Taillights
// Two rectangular rear lights mounted on the back face of the chassis.
taillightsPlane = offsetPlane(YZ, offset = chassisLength / 2)
taillightsSketch = startSketchOn(taillightsPlane)
taillightsProfile = startProfile(taillightsSketch, at = [-chassisWidth / 2, taillightsElevation])
  |> yLine(length = -taillightsHeight)
  |> xLine(length = taillightsWidth)
  |> yLine(length = taillightsHeight)
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
taillightsBody = extrude(taillightsProfile, length = lightDepth)
  |> appearance(%, color = "#ff0000")
