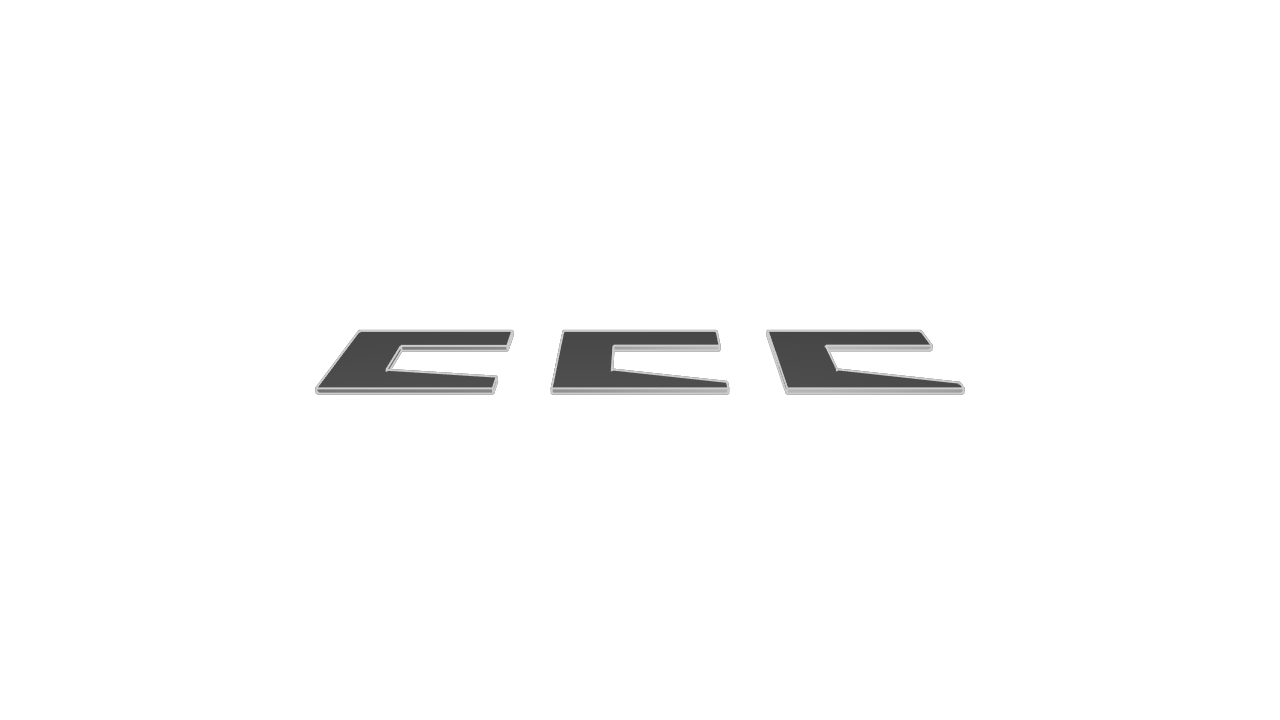

Simple angle gauge function to generate a gauge given an angle

// Angle Gauge
// Simple angle gauge function to generate a gauge given an angle
// Categories: Construction

// Set units in inches (in)
@settings(defaultLengthUnit = in)

// Define parameters
cutoutEdgeLength = 2
cutoutWidth = 0.52
cutoutAngle = 10 // degrees
cutoutDepth = 1
cutoutBaseDepth = 0.5
totalWidth = 1.25
blockEdgeLength = 0.5
flip = 0

fn gauge(cutoutAngle, N, startX, startY, deltaX, deltaY) {
  gaugeSketch = startSketchOn(XY)
    |> startProfile(at = [
         blockEdgeLength + startX + deltaX * N,
         startY + deltaY * N
       ])
    |> xLine(length = cutoutDepth + cutoutBaseDepth)
    |> yLine(length = (totalWidth - cutoutWidth) / 2 - ((1 - flip) * cutoutDepth * sin(units::toRadians(cutoutAngle))))
    |> angledLine(angle = 180 - ((1 - flip) * cutoutAngle), lengthX = cutoutDepth)
    |> yLine(length = cutoutWidth)
    |> angledLine(angle = flip * cutoutAngle, lengthX = cutoutDepth)
    |> yLine(endAbsolute = totalWidth)
    |> xLine(length = -1 * (cutoutDepth + cutoutBaseDepth))
    |> close()
    |> extrude(length = 0.05)
  return gaugeSketch
}

startX = 0
startY = 0
xSpacing = 2
angleSpacing = 5
gauge(
  cutoutAngle = 8,
  N = 0,
  startX = startX,
  startY = startY,
  deltaX = xSpacing,
  deltaY = 0,
)
gauge(
  cutoutAngle = 14,
  N = 1,
  startX = startX,
  startY = startY,
  deltaX = xSpacing,
  deltaY = 0,
)
gauge(
  cutoutAngle = 15,
  N = 2,
  startX = startX,
  startY = startY,
  deltaX = xSpacing,
  deltaY = 0,
)
