box

box

KCL

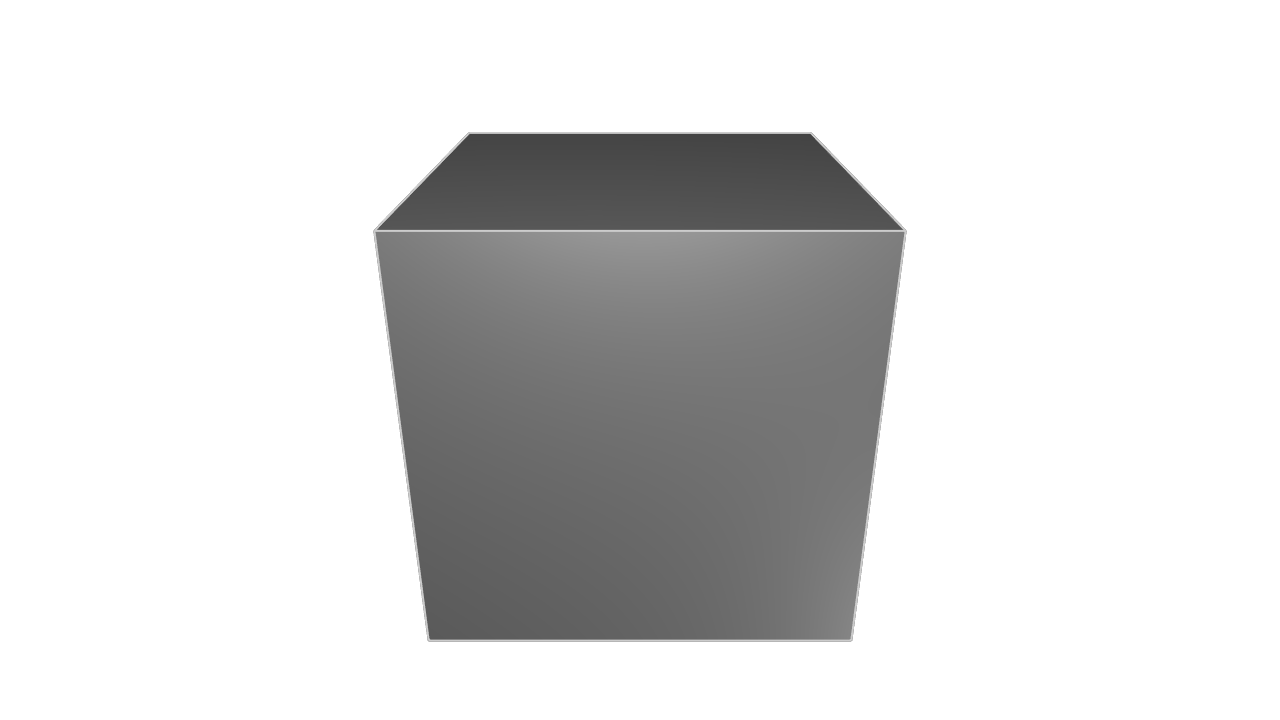

// Box
// A box is a rectangular prism defined by it's length, width, and height.




@settings(defaultLengthUnit = mm)

// Define parameters
length = 10
width = 10
height = 10

// create a sketch for the box profile on the XY plane
sketch = startSketchOn(XY)

// create the profile centered at the origin
profile = startProfile(sketch, at = [-length / 2, -width / 2])
  |> xLine(length = length)
  |> yLine(length = width)
  |> xLine(length = -length)
  |> close()

// extrude the profile to create the box
box = extrude(profile, length = height)
