cold-plate

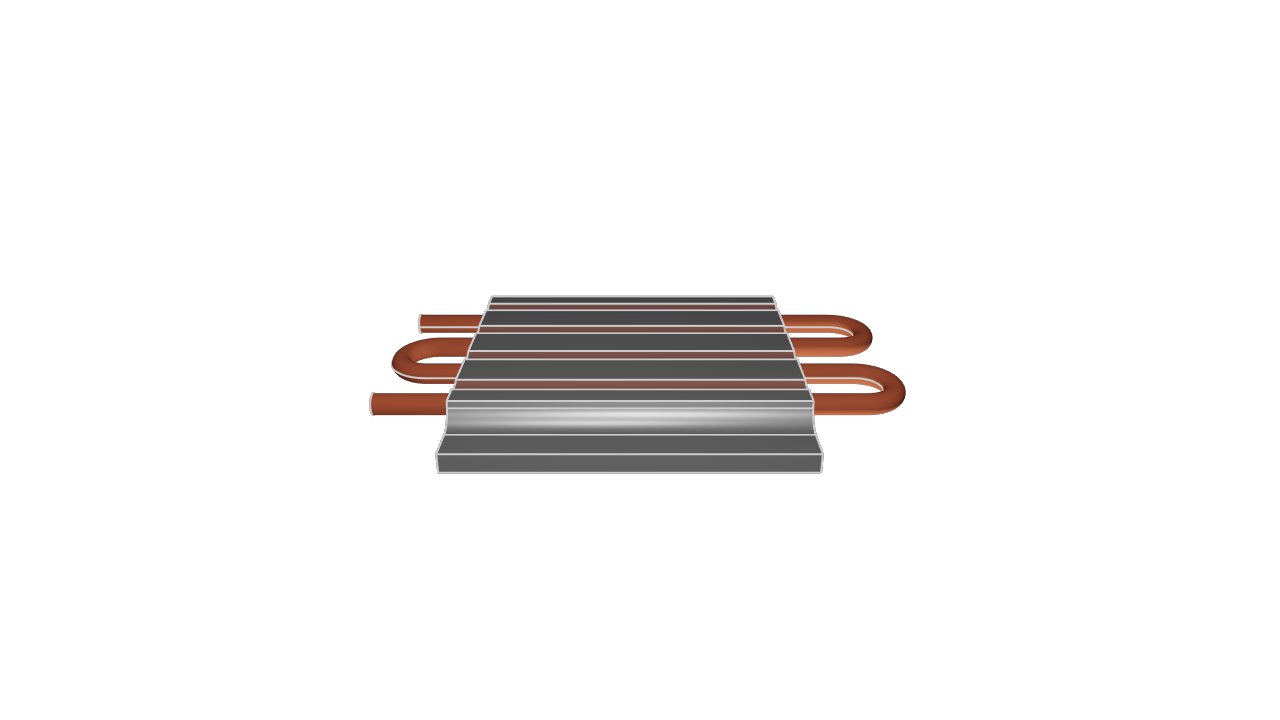

// Cold Plate
// A cold plate is a thermal management device used to remove heat from a device or component, typically by transferring heat to a liquid coolant that flows through the plate. It's a conductive cooling solution, commonly made of materials like aluminum or copper, with internal channels or tubes for the coolant

// Set units
@settings(defaultLengthUnit = in)

// Define parameters
tubeDiameter = 5 / 8
wallThickness = 0.080
bendRadius = 1

// Create the cold plate with indentions to secure each pass of the brazed copper tube
coldPlate = startSketchOn(YZ)
  |> startProfile(at = [0, tubeDiameter * 2])
  |> xLine(length = bendRadius - (tubeDiameter / 2))
  |> yLine(length = -tubeDiameter)
  |> tangentialArc(angle = 180, radius = tubeDiameter / 2)
  |> yLine(length = tubeDiameter)
  |> xLine(length = bendRadius * 2 - tubeDiameter, tag = $seg07)
  |> yLine(length = -tubeDiameter, tag = $seg09)
  |> tangentialArc(angle = 180, radius = tubeDiameter / 2)
  |> yLine(length = tubeDiameter, tag = $seg08)
  |> xLine(length = bendRadius - (tubeDiameter / 2))
  |> angledLine(angle = -77, length = tubeDiameter / 3)
  |> tangentialArc(angle = 77, radius = tubeDiameter, tag = $seg01)
  |> angledLine(angle = tangentToEnd(seg01), length = 1)
  |> yLine(endAbsolute = 0)
  |> xLine(endAbsolute = 0)
  |> mirror2d(axis = Y)
  |> close()
  |> extrude(length = 10, symmetric = true)

// Sketch the path for the copper tube to follow
copperTubePath = startSketchOn(offsetPlane(XY, offset = tubeDiameter))
  |> startProfile(at = [-7.35, -bendRadius * 3])
  |> xLine(length = 14.13, tag = $seg05)
  |> tangentialArc(angle = 180, radius = bendRadius, tag = $seg02)
  |> angledLine(angle = tangentToEnd(seg02), length = 13.02, tag = $seg06)
  |> tangentialArc(angle = -180, radius = bendRadius, tag = $seg03)
  |> angledLine(angle = tangentToEnd(seg03), length = segLen(seg06))
  |> tangentialArc(angle = 180, radius = bendRadius, tag = $seg04)
  |> angledLine(angle = tangentToEnd(seg04), length = segLen(seg05))

// Create the profile for the inner and outer diameter of the hollow copper tube
tubeWall = startSketchOn(offsetPlane(YZ, offset = -7.35))
  |> circle(center = [-bendRadius * 3, tubeDiameter], radius = tubeDiameter / 2)
  |> subtract2d(%, tool = circle(center = [-bendRadius * 3, tubeDiameter], radius = tubeDiameter / 2 - wallThickness))
  |> sweep(path = copperTubePath)
  |> appearance(color = "#b81b0a")

// Model a brazed cap to cover each tube. Constrain the caps using the walls of the plate
brazedCap = startSketchOn(YZ)
  |> startProfile(at = segEnd(seg07))
  |> arc(interiorAbsolute = [bendRadius * 3, tubeDiameter * 1.85], endAbsolute = segEnd(seg08))
  |> yLine(endAbsolute = segStartY(seg08))
  |> arc(
       interiorAbsolute = [
         bendRadius * 3,
         segEndY(seg09) + tubeDiameter / 2
       ],
       endAbsolute = segEnd(seg09),
     )
  |> line(endAbsolute = [profileStartX(%), profileStartY(%)])
  |> close()
  |> extrude(length = 10, symmetric = true)
  |> patternLinear3d(instances = 4, distance = bendRadius * 2, axis = [0, -1, 0])
  |> appearance(color = "#6b261e")
