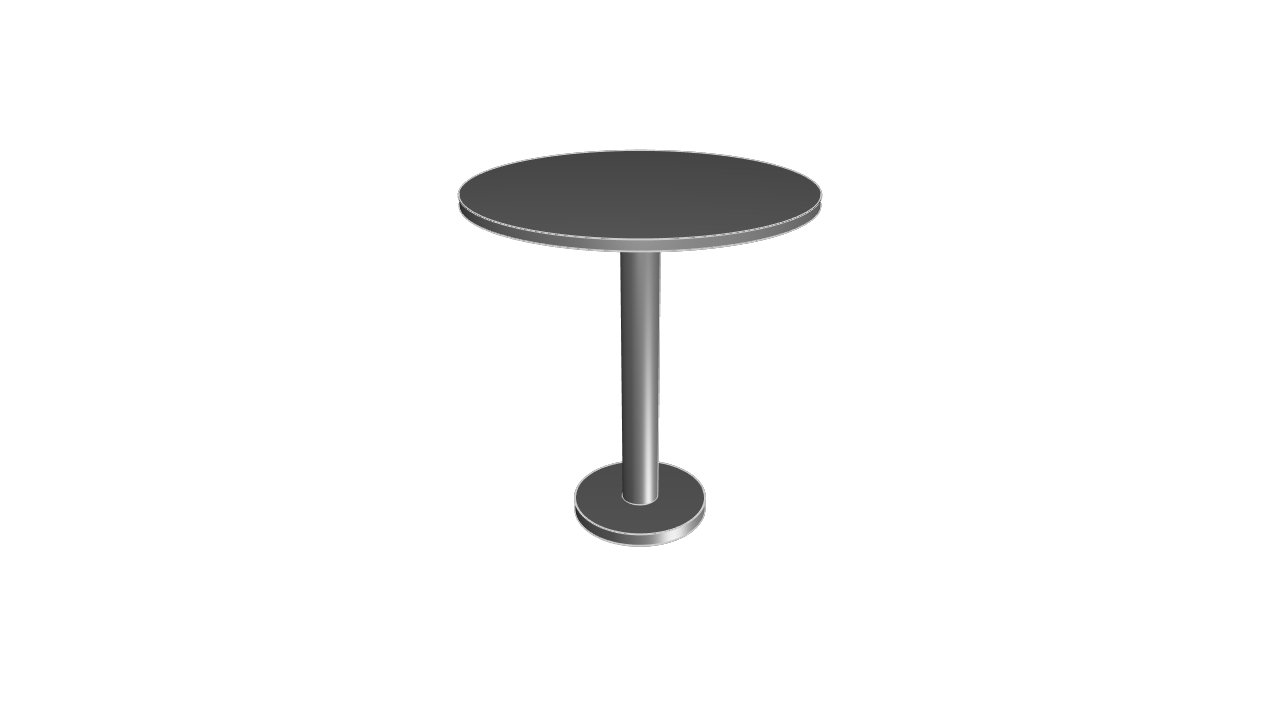

Simple round table with a base, single leg, and tabletop

// Round Table
// Simple round table with a base, single leg, and tabletop
// Categories: Construction, Maker

@settings(defaultLengthUnit = mm)

// Parameters
tableTopHeight = 750
tableTopRadius = 350
tableTopThickness = 20

baseRadius = 150
baseThickness = 30
legRadius = 40

// Tabletop
tableTopPlane = offsetPlane(XY, offset = tableTopHeight)
tableTopSketch = startSketchOn(tableTopPlane)
tableTopProfile = circle(tableTopSketch, center = [0, 0], radius = tableTopRadius)
tableTopExtrude = extrude(tableTopProfile, length = -tableTopThickness)

// Base
baseSketch = startSketchOn(XY)
baseProfile = circle(baseSketch, center = [0, 0], radius = baseRadius)
baseExtrude = extrude(baseProfile, length = baseThickness)

// Leg
legHeight = tableTopHeight - baseThickness - tableTopThickness
legPlane = offsetPlane(XY, offset = baseThickness)
legSketch = startSketchOn(legPlane)
legProfile = circle(legSketch, center = [0, 0], radius = legRadius)
legExtrude = extrude(legProfile, length = legHeight)
