Shows how to create a blend surface and use it for trim operations.

// Blend Trim Operations
// Shows how to create a blend surface and use it for trim operations.

@settings(kclVersion = 2.0)

tiltValue = 30

// construction surfaces
sketch001 = sketch(on = YZ) {
  line1 = line(start = [var -300mm, var -15mm], end = [var -150mm, var 15mm])
  horizontalDistance([line1.end, ORIGIN]) == 150
  horizontalDistance([line1.start, line1.end], labelPosition = [-218.68mm, 10.88mm]) == 150
  verticalDistance([ORIGIN, line1.end]) == tiltValue
  verticalDistance([line1.start, ORIGIN]) == tiltValue
}
sketch002 = sketch(on = XZ) {
  line1 = line(start = [var 600mm, var -15mm], end = [var 300mm, var 15mm])
  horizontalDistance([ORIGIN, line1.end]) == 300
  horizontalDistance([line1.end, line1.start]) == 300
  verticalDistance([ORIGIN, line1.end]) == tiltValue
  verticalDistance([line1.start, ORIGIN]) == tiltValue
}
extrude001 = extrude(sketch001.line1, length = -100, bodyType = SURFACE)
extrude002 = extrude(sketch002.line1, length = -100, bodyType = SURFACE)
hidden001 = hide(sketch001)
hidden002 = hide(sketch002)

// create blend
blend001 = blend([
  getBoundedEdge(extrude001, edge = extrude001.sketch.tags.line1),
  getBoundedEdge(extrude002, edge = extrude002.sketch.tags.line1)
])

// surface to cut
sketch003 = sketch(on = XY) {
  line1 = line(start = [var 230mm, var -140mm], end = [var 270mm, var -200mm])
  verticalDistance([line1.end, line1.start]) == 60
  horizontalDistance([line1.start, line1.end]) == 40
  horizontalDistance([ORIGIN, line1.start]) == 230
  verticalDistance([line1.start, ORIGIN]) == 140
}
extrude003 = extrude(
  sketch003.line1,
  length = 100,
  symmetric = true,
  bodyType = SURFACE,
)
hidden003 = hide(sketch003)

// perform split operation with blend
split001 = split(extrude003, tools = blend001, keepTools = true)
hide(split001[1])

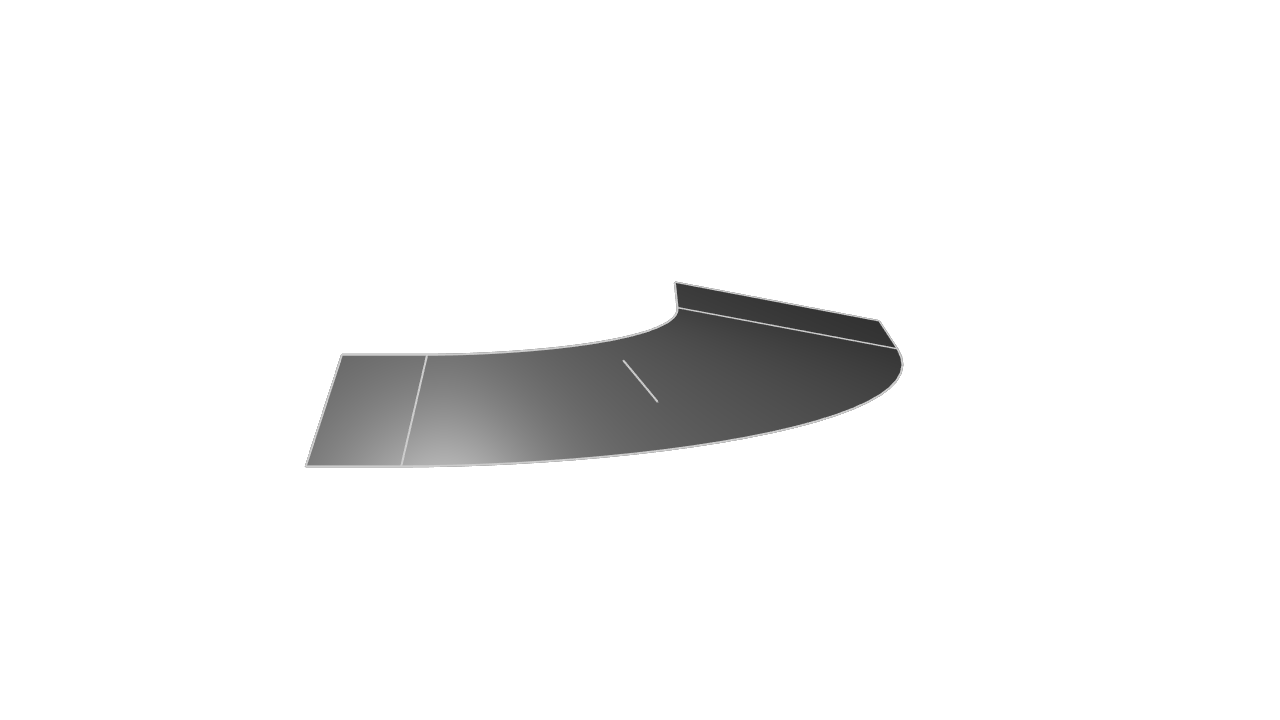

Blend Trim Operations
